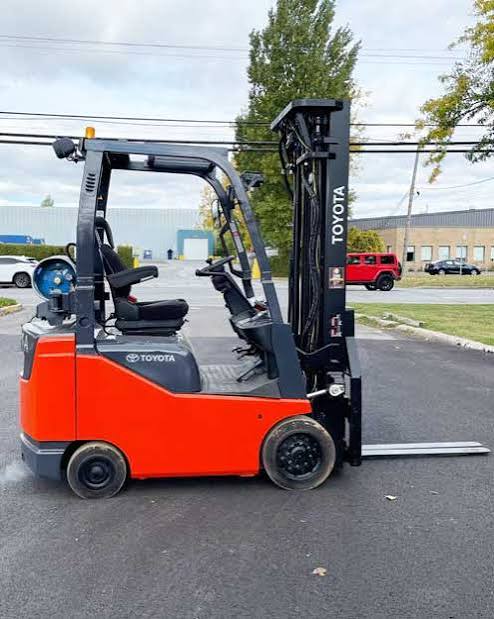

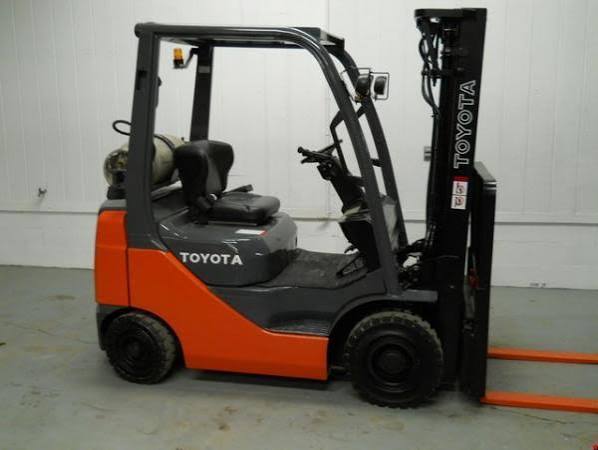

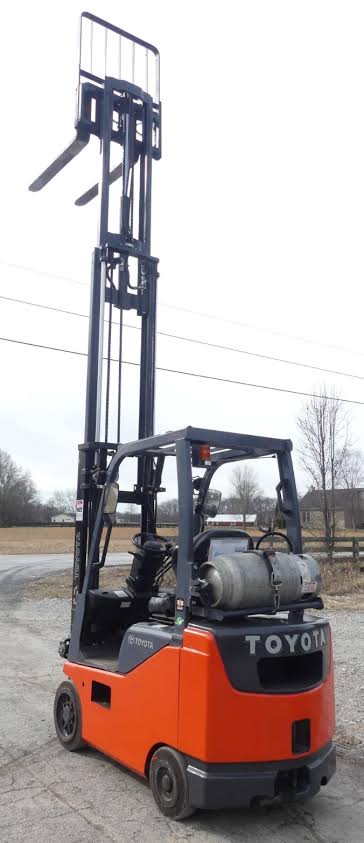

Toyota
Komatsu
FG25T-12
Forklift
32 specifications
1 / 5
Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 6,416 lb |
|---|---|
| Max Speed | 10.9 mph |
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
| Tire Type | Cushion |
| Fuel Capacity | 7.2 gal |
| Hydraulic System Relief Valve Pressure | 2,275 psi |
| Hydraulic System Fluid Capacity | 16.0 gal |
Engine
| Engine Model | 4Y-ECS |
|---|---|
| Displacement | 136 in³ |
| Power Measured @ | 2,250 rpm |
| Number of Cylinders | 4 |
| Torque Measured @ | 2,100 rpm |
| Engine Make | TOYOTA |
| Power | 48.0 hp |
| Torque | 118 lb-ft |
Dimensions
| Wheelbase | 49 in |
|---|---|
| Overall Width | 39 in |
| Turning Radius | 71 in |
| Length to Fork Face | 85 in |
| Gradeability | 40.0 % |
| Height to Top of Overhead Guard | 80 in |
| Max Fork Height | 132 in |
| Free lift | 6 in |
Transmission
| Number of Forward / Reverse Speeds | 1 |
|---|---|
| Type - TTS870 | Powershift |
Brakes & Steering
| Service brake | Hydraulic |
|---|---|
| Parking brake | Mechanical |
Tires & Wheels
| Rear Tires Size | 14 x 4-1/2 x 8 |
|---|---|
| Front Tires Size | 18 x 6 x 12-1/8 |
| Number of Tires - Rear | 2 |
| Number of Tires - Front | 2 |
Mast
| Load Capacity | 3,527 lb |
|---|---|
| Load Center | 24 in |
| Mast Tip Forward | 6 ° |
| Mast Tip Rear | 10 ° |
| Lift height- largest mast | 179 in |
| Lift height-smallest mast | 83 in |
Performance
| Drawbar Pull Max -Full Load | 3,748 lb |
|---|---|
| Drawbar Pull Max -No Load | 1,433 lb |
