Pel-Job

EB506EX

Mini Excavator

Operating Weight
11,144 lb
Max Digging Depth
135 in
Gross Power
36.8 hp
Net Power
33.7 hp
All mini excavators

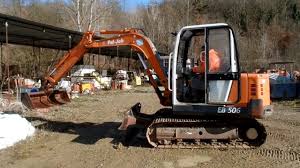

Pel-Job EB506EX Mini Excavator
1 / 5
Image 1 of 5
Image: heavy-spec.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,144 lb
Fuel Capacity21.2 gal
Hydraulic Pump Flow Capacity27.1 gal/min
Hydraulic System Relief Valve Pressure3,626 psi
Operating Voltage12 V
Alternator Supplied Amperage55 A

Engine

Engine specifications
Engine Model104.22
Displacement135 in³
Power Measured @2,800 rpm
Gross Power36.8 hp
Net Power33.7 hp
Number of Cylinders4
Torque Measured @2,050 rpm
Max Torque103 lb-ft

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab100 in
Tail Swing Radius59 in
Width to Outside of Tracks73 in
Removal Counterweight Clearance28 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.2 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth135 in
Max Reach Along Ground221 in
Max Vertical Wall Digging Depth115 in
Max Loading Height142 in
Max Cutting Height199 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth155 in
Max Cutting Height207 in
Max Loading Height150 in
Max Vertical Wall Digging Depth131 in
Max Reach Along Ground235 in
