Roadtec Astec

RX-900

Cold Planer

Operating Weight - Full Load
90,200 lb
Cutting Width
86 in
Gross Power
1,274.0 hp
All cold planers/milling machines

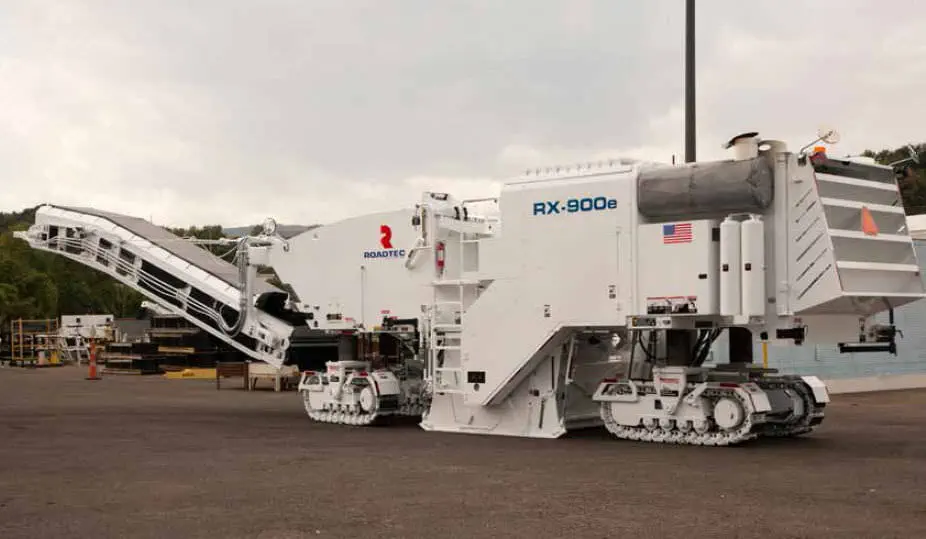

Roadtec Astec RX-900 Cold Planer
1 / 5
Image 1 of 5
Image: directindustry.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight - Full Load90,200 lb
Operating Speed1.8 mph
Travel Speed3.2 mph
Fuel Capacity360.1 gal
Water Spray System Fluid Capacity1,250.0 gal
Shipping Weight - Empty76,400 lb
Hydraulic System Fluid Capacity124.5 gal
Operating Voltage24 V

Engine

Engine specifications
Engine ModelC27
Power Measured @2,100 rpm
Gross Power1,274.0 hp

Dimensions

Dimensions specifications
Shipping Height126 in
Shipping Length418 in
Shipping Width108 in
Operating Length661 in
Max Operating Height178 in

Track

Track specifications
Number of Track Units3
Front Track Width14 in
Rear Track Width16 in

Conveyor System

Conveyor System specifications
Discharge Conveyor Width42 in
Discharge Conveyor Swing (R/L)60 °

Rotary Cutter

Rotary Cutter specifications
Cutting Width86 in
Cutting Depth14 in
Tool Spacing1 in
