Rogator
Apache
AS1220
Sprayer
21 specifications
1 / 5

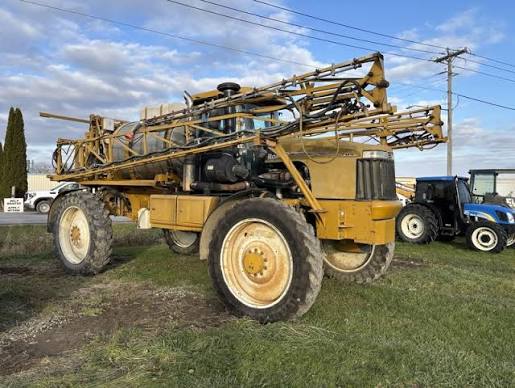

Image 1 of 5
Specifications
28 data points
Operating Specifications
| Operating Weight | 27,640 lb |
|---|---|
| Solution Tank Capacity | 1,199.9 gal |
| Rinse Tank Capacity | 109.9 gal |
| Fuel Capacity | 130.0 gal |
| Hydraulic Fluid Capacity | 60.0 gal |
| Alternator Supplied Amperage | 160 A |
| Operating Voltage | 12 V |
Engine
| Engine Model | C-9 |
|---|---|
| Displacement | 537 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 275.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
| Engine Make | CAT |
| Emission Tier Level | Tier II |
| Gross Torque | 904 lb-ft |
Dimensions
| Wheelbase | 185 in |
|---|---|
| Overall Length | 290 in |
| Transport Height | 151 in |
| Tire Size | 380/90R46 |
| Track Width | 155 in |
Transmission
| Max Speed | 32.4 mph |
|---|
Boom
| Max Boom Width | 1,201 in |
|---|---|
| Min Boom Width | 709 in |
| Max Adjustable Height | 83 in |
| Min Adjustable Height | 31 in |
| Nozzle Spacing | 20 in |
| Number of Sections | 5 |
