Sakai

SW330

Smooth Drum Roller

Operating Weight
6,504 lb
Max Speed
7.5 mph
Gross Power
34.1 hp
All smooth drum rollers

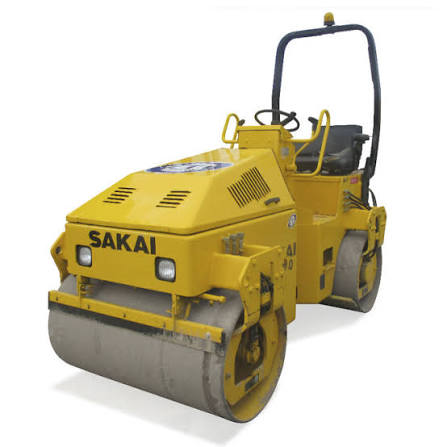

Sakai SW330 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: heavyequipmentguide.ca

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,504 lb
Max Speed7.5 mph
Fuel Capacity13.3 gal
Operating Width51 in
Operating Voltage12 V

Engine

Engine specifications
Engine ModelD1703
Displacement101 in³
Power Measured @2,800 rpm
Gross Power34.1 hp
MakeKubota D1703

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab70 in
Wheelbase6 in
Overall Length9 in
Overall Width56 in
Turning Radius - Inside99 in

Drum

Drum specifications
Drum Diameter28 in
Vibration Frequency 167 vpm
Vibration Frequency4,000 vpm
Centrifugal Force - MEd7,059 lb
