Sakai

TS160

Pneumatic Roller

Max Speed
9.4 mph
Gross Power
19.6 hp
Overall Length
9 in
Overall Width
52 in
All pneumatic rollers

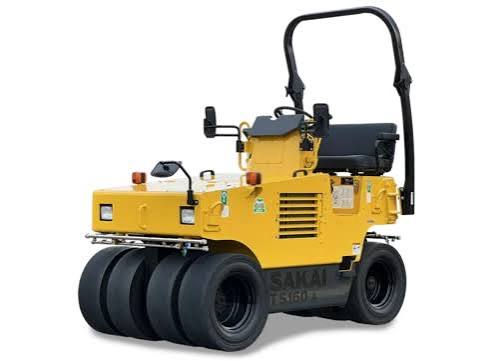

Sakai TS160 Pneumatic Roller
1 / 5
Image 1 of 5
Image: multiequipindo.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Max Speed9.4 mph
Fuel Capacity9.6 gal
Water Spray Tank Fluid Capacity48.9 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity10.4 gal

Engine

Engine specifications
Engine ModelD1105-K2A diesel engine
Power Measured @2,300 rpm
Gross Power19.6 hp

Weights

Weights specifications
Operating Weight - standard5,986 lb
Operating Weight - max ballast6,394 lb
Average Weight per Wheel - Max Ballast913 lb
Average Weight per Wheel - Standard855 lb

Dimensions

Dimensions specifications
Ground Clearance8 in
Wheelbase76 in
Overall Length9 in
Overall Width52 in
Height - Top of ROPS/FOPS71 in

Tires & Wheels

Tires & Wheels specifications
Number of Tires - Rear3
Number of Tires - Front4
Wheel Track/Tire Overlap3 in
Standard Tire Size9.5/65-15-6PR(OR) smooth tread
