Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

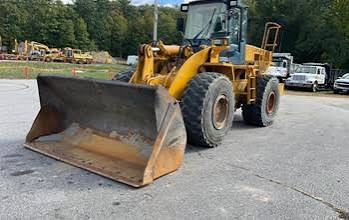

Image 1 of 5
Specifications
39 data points
Operating Specifications
| Operating Weight | 36,156 lb |
|---|---|
| Fuel Capacity | 66.1 gal |
| Tire Size | 23.5x25 |
| Hydraulic System Fluid Capacity | 47.6 gal |
| Static Tipping Weight | 29,983 lb |
| Operating Voltage | 24 V |
| Turning Radius | 217 in |
| Rear Axle Oscillation | 28 ° |
| Alternator Supplied Amperage | 50 A |
| Cooling System Fluid Capacity | 15.4 gal |
| Transmission Fluid Capacity | 7.4 gal |
Engine
| Engine Model | C8.3-C |
|---|---|
| Displacement | 507 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 203.0 hp |
| Aspiration | turbocharged |
| Torque Measured @ | 1,500 rpm |
Hydraulic System
| Pump Flow Capacity | 71.4 gal/min |
|---|---|
| Raise Time | 6.1 s |
| Lower Time | 3.4 s |
| Dump Time | 1.4 s |
| Relief Valve Setting | 2,990 psi |
| Pump Type | tandem gear pumps |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 133 in |
| Wheelbase | 126 in |
| Reach at Max Lift and Dump | 44 in |
| Length with Bucket on Ground | 307 in |
| Hinge Pin - Max Height | 156 in |
Transmission
| Max Speed - Forward | 21.8 mph |
|---|---|
| Max Speed - Reverse | 14.0 mph |
| Transmission Type | countershaft |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.70 yd³ |
|---|---|
| Bucket Capacity - struck | 3.30 yd³ |
| Dump Clearance at Max Raise | 117 in |
| Breakout Force | 36,910 lb |
| Bucket Width | 110 in |
