Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

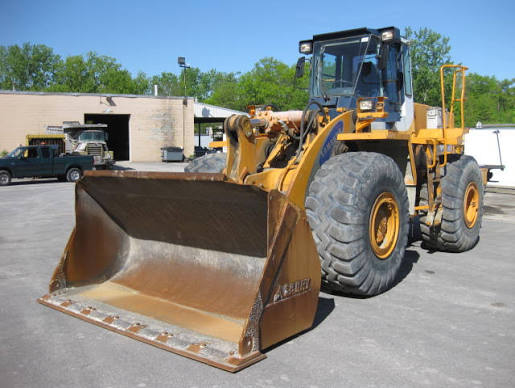

Image 1 of 5
Specifications
39 data points
Operating Specifications
| Operating Weight | 45,966 lb |
|---|---|
| Fuel Capacity | 96.2 gal |
| Tire Size | 23.5x25 |
| Hydraulic System Fluid Capacity | 67.4 gal |
| Static Tipping Weight | 37,457 lb |
| Operating Voltage | 24 V |
| Turning Radius | 229 in |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 50 A |
| Cooling System Fluid Capacity | 17.4 gal |
| Transmission Fluid Capacity | 8.5 gal |
Engine
| Engine Model | LTA10-C |
|---|---|
| Displacement | 610 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 256.0 hp |
| Aspiration | turbocharged |
| Torque Measured @ | 1,300 rpm |
Hydraulic System
| Pump Flow Capacity | 97.8 gal/min |
|---|---|
| Raise Time | 6.2 s |
| Lower Time | 3.6 s |
| Dump Time | 1.4 s |
| Relief Valve Setting | 2,840 psi |
| Pump Type | vane type |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 137 in |
| Wheelbase | 134 in |
| Reach at Max Lift and Dump | 49 in |
| Length with Bucket on Ground | 330 in |
| Hinge Pin - Max Height | 163 in |
Transmission
| Max Speed - Forward | 22.3 mph |
|---|---|
| Max Speed - Reverse | 15.4 mph |
| Transmission Type | countershaft |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 4.90 yd³ |
|---|---|
| Bucket Capacity - struck | 4.20 yd³ |
| Dump Clearance at Max Raise | 120 in |
| Breakout Force | 41,000 lb |
| Bucket Width | 122 in |
