Scat Trak

2000D

Skid Steer Loader

Operating Weight
6,945 lb
Max Speed
6.3 mph
Gross Power
86.0 hp
All skid steer loaders

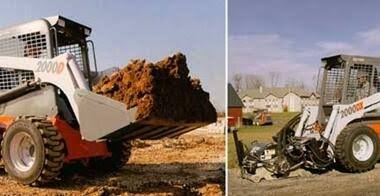

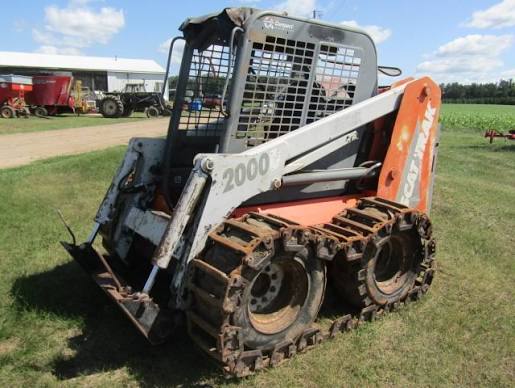

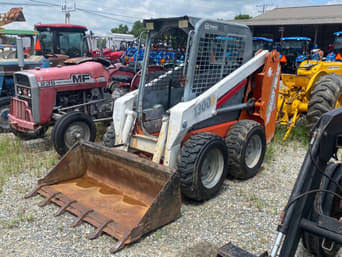

Scat Trak 2000D Skid Steer Loader
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,945 lb
Max Speed6.3 mph
Fuel Capacity21.6 gal
Hydraulic System Fluid Capacity17.1 gal
Tire Size12.00x16.5
Operating Voltage12 V
Alternator Supplied Amperage55 A

Engine

Engine specifications
Engine Model1004.42
Displacement258 in³
Power Measured @2,400 rpm
Gross Power86.0 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity19.0 gal/min

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab81 in
Wheelbase43 in
Width Over Tires72 in
Reach at Max Lift and Dump24 in
Length with Bucket138 in
Clearance at Max Lift and Dump95 in
Turning Radius from Center - inc bucket51 in
Turning Radius from Center - machine rear64 in
Length w/o Bucket109 in

Loader

Loader specifications
Operating Load Rating2,000 lb
Tipping Angle4,000 °
