Scat Trak

2300DX

Skid Steer Loader

Operating Weight
7,775 lb
Gross Power
86.0 hp
All skid steer loaders

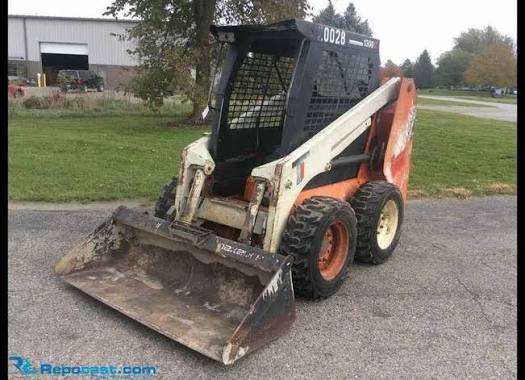

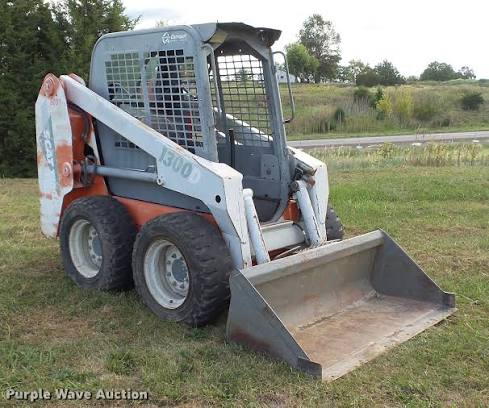

Scat Trak 2300DX Skid Steer Loader
1 / 5
Image 1 of 5
Image: horseshoetire.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,775 lb
Fuel Capacity22.6 gal
Hydraulic System Fluid Capacity17.2 gal
Tire Size12.00x16.5
Operating Voltage12 V
Alternator Supplied Amperage55 A
Operating Speed6.3 mph

Engine

Engine specifications
Engine Model1004.42
Displacement258 in³
Power Measured @2,400 rpm
Gross Power86.0 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity33.0 gal/min
Relief Valve Pressure3,000 psi

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab81 in
Wheelbase44 in
Width Over Tires72 in
Reach at Max Lift and Dump24 in
Length with Bucket142 in
Clearance at Max Lift and Dump95 in
Turning Radius from Center - inc bucket53 in
Turning Radius from Center - machine rear66 in
Length w/o Bucket113 in

Loader

Loader specifications
Operating Load Rating2,450 lb
Tipping Angle4,900 °
