Skyjack

SJ12

Aerial Lift

Overall Length
54 in
Overall Width
31 in
All aerial lifts

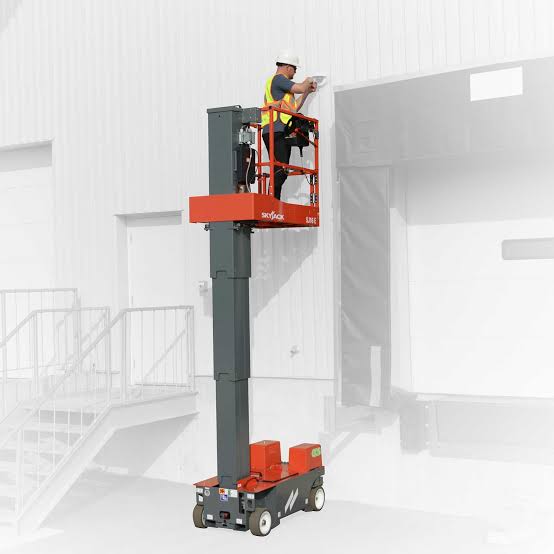

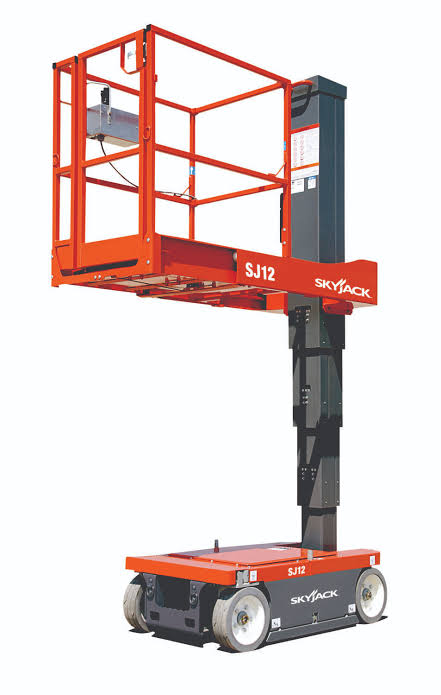

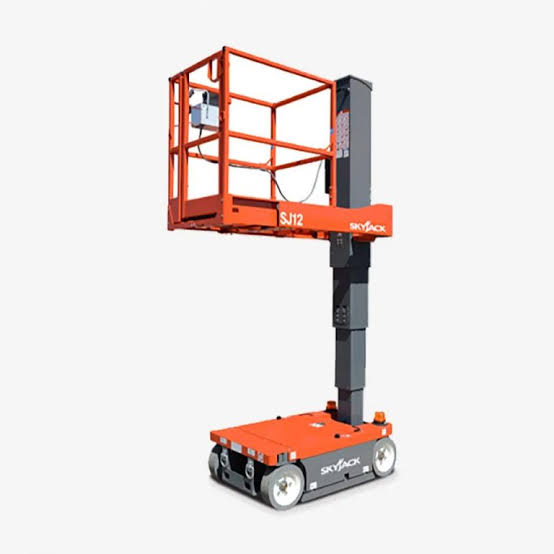

Skyjack SJ12 Aerial Lift
1 / 5
Image 1 of 5
Image: liftincorporated.com

Specifications

20 data points

Dimensions

Dimensions specifications
Overall Length54 in
Overall Width31 in
Gradeability30.0 %
Stowed Height71 in
Turning Radius - Outside minimum55 in

Performance

Performance specifications
Operating Weight1,724 lb
Tire Size12 x 4 x 8
Tire Fill/TypeSolid

Platform

Platform specifications
Max Platform Weight Capacity500 lb
Platform Inner Length37 in
Platform Inner Width27 in
Max Working Height216 in
Lift Time16.0 s
Lower Time14.0 s
Drive Speed - Platform Elevated0.5 mph
Drive Speed - Platform Lowered2.5 mph
Wind Rating28.0 mph
Maximum no of Persons2
Local Floor Load - no load80 psi
Local Floor Load - with rated load101 psi
