Spra-Coupe

3640

Sprayer

Max Speed
20.8 mph
Solution Tank Capacity
300.0 gal
Displacement
244 in³
Gross Power
110.0 hp
All floaters/sprayers

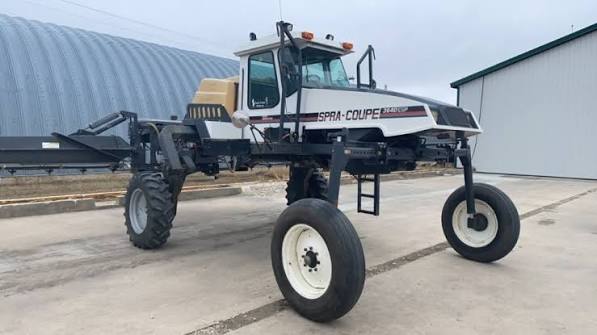

Spra-Coupe 3640 Sprayer
1 / 5
Image 1 of 5
Image: m.usfarmer.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Solution Tank Capacity300.0 gal
Fuel Capacity25.0 gal
Dry Weight - min8,320 lb

Engine

Engine specifications
Engine ModelDiesel 1000 Series
Displacement244 in³
Gross Power110.0 hp
Number of Cylinders4
AspirationTurbo-Charged

Dimensions

Dimensions specifications
Ground Clearance49 in
Wheelbase139 in
Overall Length20 in
Transport Height121 in
Tire SizeFront 9.00x24 Rib 8-ply Rear 12.4x24 F8 8 ply

Transmission

Transmission specifications
Max Speed20.8 mph
Transmission TypeBorg-Warner T-5 manual shift
Number of Forward Gears5
Number of Reverse Gears1

Boom

Boom specifications
Min Boom Width720 in
Max Adjustable Height92 in
Min Adjustable Height21 in
Nozzle Spacing20 in
