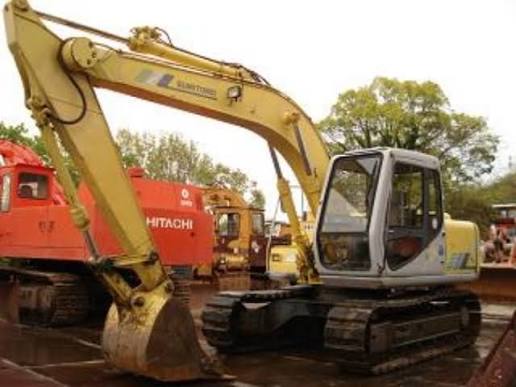

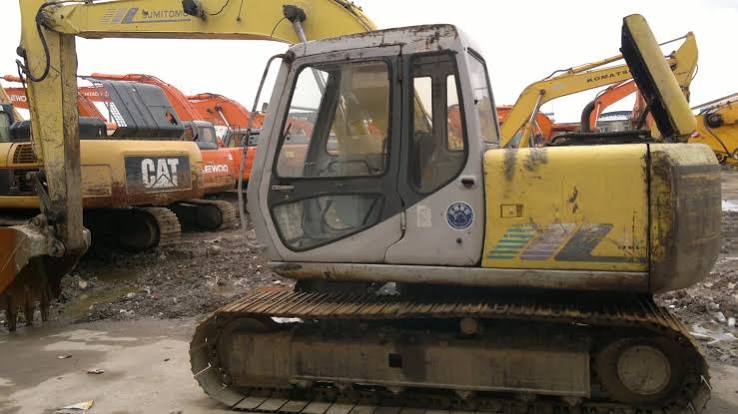

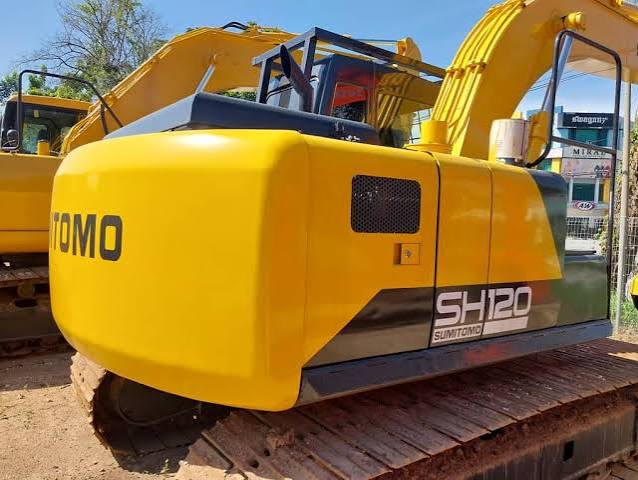

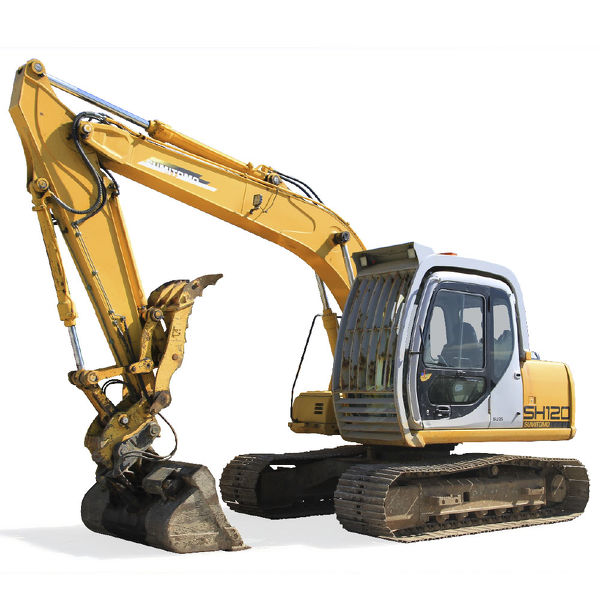

Sumitomo
SH120-2
- Operating Weight
- 27,514 lb
- Max Digging Depth
- 203 in
- Max Digging Depth
- 220 in
- Net Power
- 87.2 hp
1 / 5
Image 1 of 5
Specifications
54 data points
Operating Specifications
| Operating Weight | 27,514 lb |
|---|---|
| Fuel Capacity | 63.5 gal |
| Hydraulic Pump Flow Capacity | 64.0 gal/min |
| Hydraulic System Fluid Capacity | 31.8 gal |
| Engine Oil Capacity | 4.1 gal |
| Cooling System Fluid Capacity | 5.1 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.6 gal |
| Alternator Supplied Amperage | 25 A |
Engine
| Engine Model | A-4BG1T |
|---|---|
| Displacement | 264 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 87.2 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 217 lb-ft |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 107 in |
| Length of Track on Ground | 110 in |
| Tail Swing Radius | 81 in |
| Width to Outside of Tracks | 98 in |
| Removal Counterweight Clearance | 36 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 6 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 20 in |
| Number of Shoes per Side | 44 |
| Number of Carrier Rollers per Side | 1 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 203 in |
|---|---|
| Max Reach Along Ground | 315 in |
| Max Loading Height | 253 in |
| Max Vertical Wall Digging Depth | 181 in |
| Max Cutting Height | 348 in |
| Shipping Length of Unit | 300 in |
| Shipping Height of Unit | 107 in |
Bucket
| Reference Bucket Capacity | 0.71 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.90 yd³ |
| Minimum Bucket Capacity | 0.41 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 220 in |
|---|---|
| Max Vertical Wall Digging Depth | 197 in |
| Max Cutting Height | 359 in |
| Max Loading Height | 264 in |
| Max Reach Along Ground | 329 in |
| Shipping Length of Unit | 300 in |
| Shipping Height of Unit | 107 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 239 in |
|---|---|
| Max Cutting Height | 371 in |
| Max Loading Height | 277 in |
| Max Vertical Wall Digging Depth | 215 in |
| Max Reach Along Ground | 347 in |
| Shipping Length of Unit | 300 in |
| Shipping Height of Unit | 107 in |
