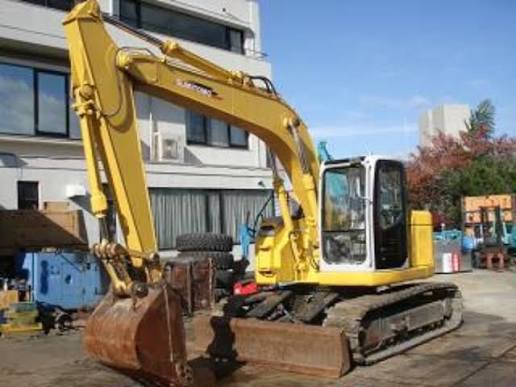

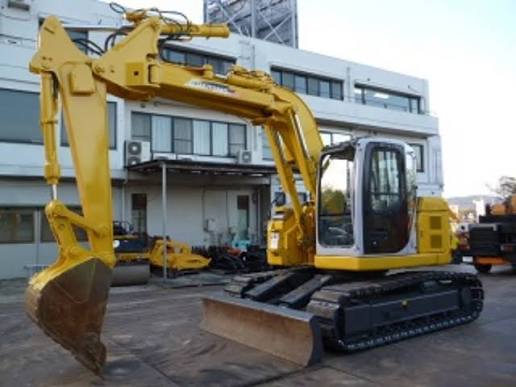

Sumitomo
Hitachi
EX135USR
Excavator
23 specifications
1 / 5
Image 1 of 5
Specifications
22 data points
Operating Specifications
| Operating Weight | 27,337 lb |
|---|---|
| Fuel Capacity | 43.6 gal |
| Hydraulic System Fluid Capacity | 34.4 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
Engine
| Engine Model | BB-4BG1T |
|---|---|
| Displacement | 264 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 87.0 hp |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 109 in |
| Length of Track on Ground | 110 in |
| Tail Swing Radius | 90 in |
| Width to Outside of Tracks | 98 in |
| Removal Counterweight Clearance | 35 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 79 in |
| Max Travel Speed | 3.2 mph |
| Shoe Size | 20 in |
Boom/Stick Excavator Option 1
| Shipping Length of Unit | 285 in |
|---|---|
| Shipping Height of Unit | 109 in |
Bucket
| Reference Bucket Capacity | 0.60 yd³ |
|---|
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
