Sumitomo

SH130-5

Excavator

Operating Weight
27,558 lb
Max Digging Depth
219 in
Net Power
95.1 hp
All excavators

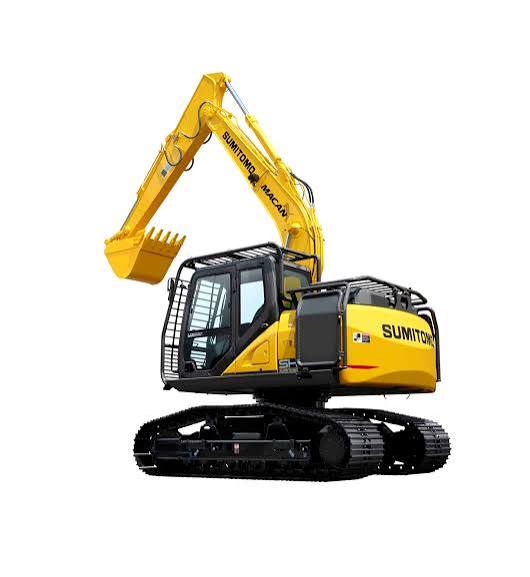

Sumitomo SH130-5 Excavator
1 / 5
Image 1 of 5
Image: tcim.com.my

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight27,558 lb
Hydraulic Pump Flow Capacity94.6 gal/min
Hydraulic System Relief Valve Pressure5,541 psi

Engine

Engine specifications
Engine ModelAJ-4JJ1X
Displacement183 in³
Power Measured @2,000 rpm
Net Power95.1 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Length of Track on Ground110 in
Tail Swing Radius84 in
Width to Outside of Tracks102 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.5 mph
Shoe Size20 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth219 in
Max Reach Along Ground326 in
Max Vertical Wall Digging Depth196 in
Shipping Length of Unit300 in
Shipping Height of Unit111 in

Bucket

Bucket specifications
Reference Bucket Capacity0.71 yd³
