Tadano

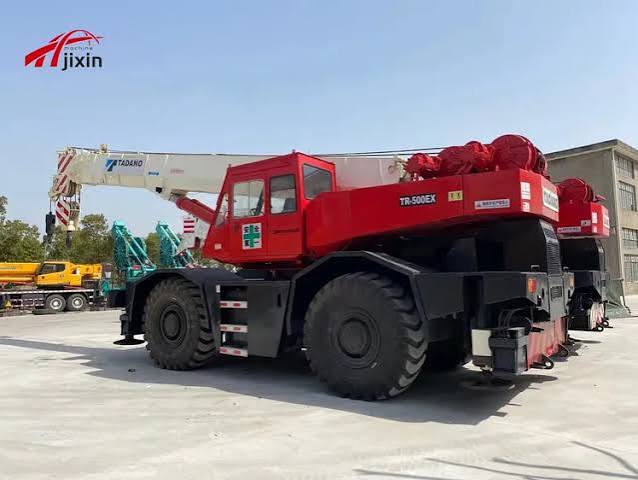

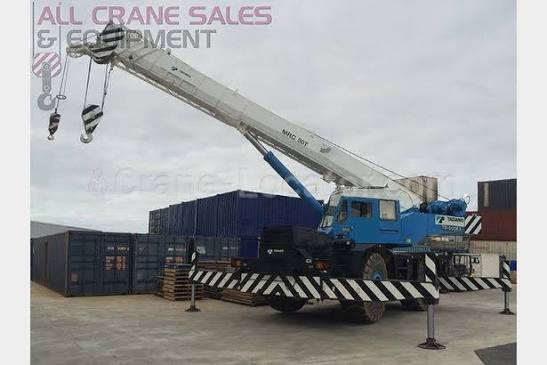

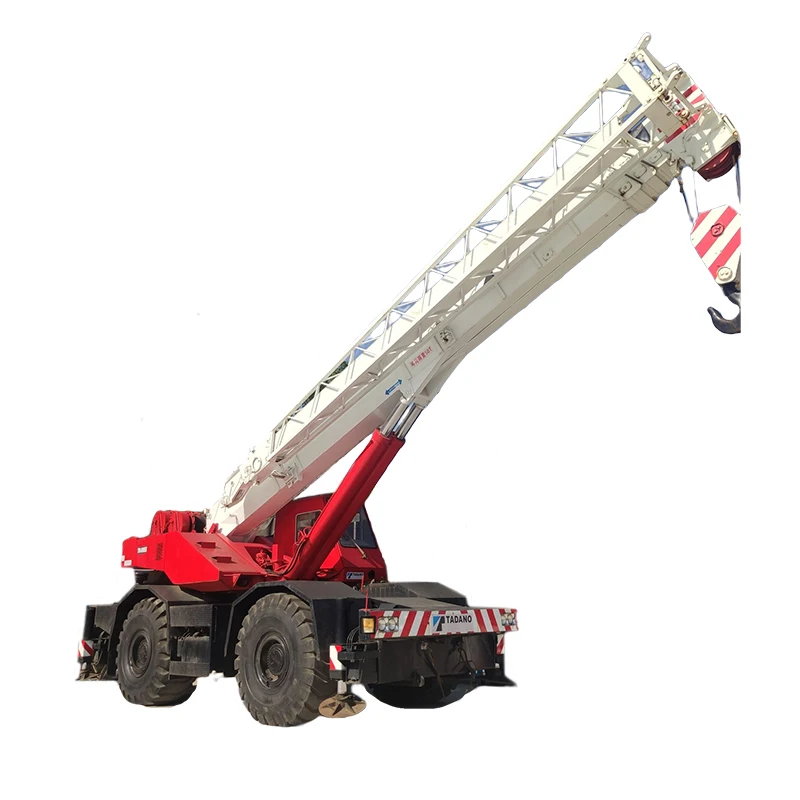

TR-500EX
- Operating Weight
- 95,019 lb
- Max Lift Capacity
- 110,231 lb
- Max Speed - Forward
- 21.8 mph
- Gross Power
- 187.5 hp
1 / 5
Image 1 of 5
Specifications
28 data points
Operating Specifications
| Operating Weight | 95,019 lb |
|---|---|
| Fuel Capacity | 66.1 gal |
| Tire Size | 29.5-25-22 PR |
| Operating Voltage | 24 V |
| Hydraulic System Fluid Capacity | 195.5 gal |
| Cooling System Fluid Capacity | 3.0 gal |
Engine
| Engine Model | 6D22 |
|---|---|
| Displacement | 680 in³ |
| Power Measured @ | 2,300 rpm |
| Gross Power | 187.5 hp |
| Aspiration | Direct injection Water cooled |
| Torque Measured @ | 1,200 rpm |
| Max Torque | 499 lb-ft |
| Engine Make | Mitsubishi |
Dimensions
| Wheelbase | 152 in |
|---|---|
| Transport Width | 131 in |
| Transport Height | 150 in |
| Transport Length | 535 in |
| Width w/ Outriggers Extended | 276 in |
| Upper Structure Tail Swing Radius | 163 in |
| Carrier/Base Length | 321,457 in |
Transmission
| Max Speed - Forward | 21.8 mph |
|---|
Boom
| Max Lift Capacity | 110,231 lb |
|---|---|
| Max Height @ Max Raise Angle - no jib | 1,343 in |
| Min Height @ Max Raise Angle | 422 in |
| Max Elevating Angle | 80 ° |
| Number of Sections | 4 |
| Swing Speed | 2 rpm |
