GroveGrove

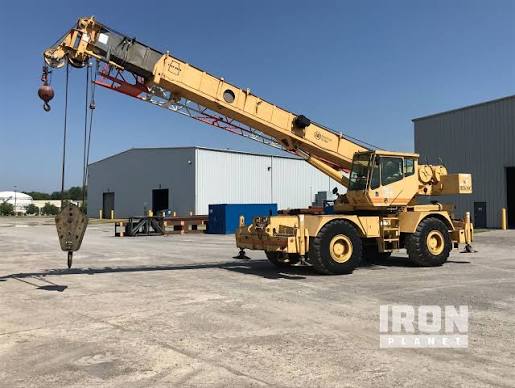

RT625
Rough Terrain Crane
38 specifications
Grove
RT635
- Operating Weight
- 57,467 lb
- Max Lift Capacity
- 70,000 lb
- Max Speed - Forward
- 27.6 mph
- Gross Power
- 159.6 hp
1 / 5
Image 1 of 5
Specifications
33 data points
Operating Specifications
| Operating Weight | 57,467 lb |
|---|---|
| Fuel Capacity | 60.0 gal |
| Tire Size | 23.5X25-24PR |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 137.0 gal |
| Alternator Supplied Amperage | 90 A |
Engine
| Engine Model | 8.2L |
|---|---|
| Displacement | 500 in³ |
| Power Measured @ | 2,800 rpm |
| Gross Power | 159.6 hp |
| Aspiration | naturally aspirated |
| Torque Measured @ | 1,200 rpm |
| Max Torque | 324 lb-ft |
| Engine Make | Detrolt Diesel |
| Stroke | 5 in |
| Bore | 4 in |
Dimensions
| Wheelbase | 12 in |
|---|---|
| Transport Width | 96 in |
| Transport Height | 142 in |
| Transport Length | 485 in |
| Width w/ Outriggers Extended | 240 in |
| Upper Structure Tail Swing Radius | 138 in |
| Carrier/Base Length | 291 in |
Transmission
| Max Speed - Forward | 27.6 mph |
|---|---|
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 6 |
| Transmission Type | remote mounted powershift |
Boom
| Max Lift Capacity | 70,000 lb |
|---|---|
| Max Height @ Max Raise Angle - no jib | 1,272 in |
| Min Height @ Max Raise Angle | 384 in |
| Max Elevating Angle | 75 ° |
| Number of Sections | 3 |
| Swing Speed | 3 rpm |
