Link Belt

RTC-8030

Rough Terrain Crane

Operating Weight
52,067 lb
Gross Power
152.0 hp
All rough terrain cranes

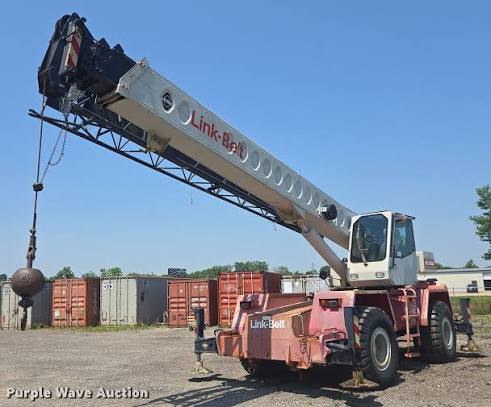

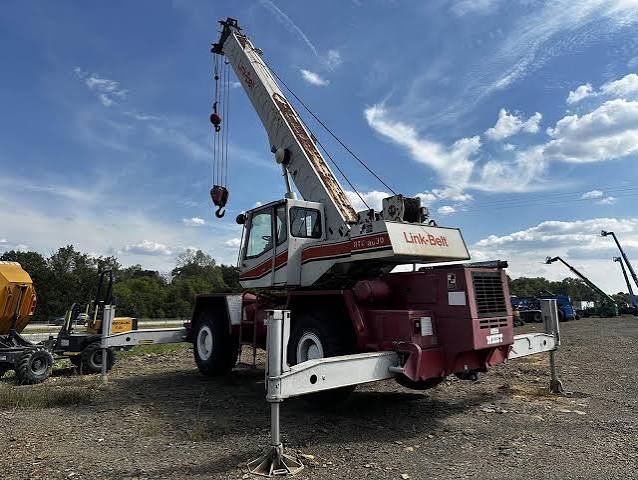

Link Belt RTC-8030 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight52,067 lb
Fuel Capacity75.0 gal
Tire Size20.5 x 25
Operating Voltage12 V
Hydraulic System Fluid Capacity110.0 gal
Alternator Supplied Amperage130 A

Engine

Engine specifications
Engine Model6BT 5.9
Displacement359 in³
Power Measured @2,500 rpm
Gross Power152.0 hp
Number of Cylinders6
Max Torque400 lb-ft
Engine MakeCummins
Bore4 in
Stroke5 in
Crankcase capacity4.3 gal

Dimensions

Dimensions specifications
Ground Clearance11 in
Wheelbase150 in
Transport Width90 in
Transport Height137 in
Transport Length479 in
Width w/ Outriggers Extended263 in
Upper Structure Tail Swing Radius126 in
Carrier/Base Length310,631 in

Transmission

Transmission specifications
Number of Forward Gears6
Number of Reverse Gears6
Transmission TypePowershift

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib844 in
Min Height @ Max Raise Angle346 in
Max Elevating Angle80 °
Number of Sections3
Swing Speed4 rpm
