Terex

RT 335

Rough Terrain Crane

Operating Weight
63,259 lb
Max Speed - Forward
24.0 mph
Gross Power
152.0 hp
All rough terrain cranes

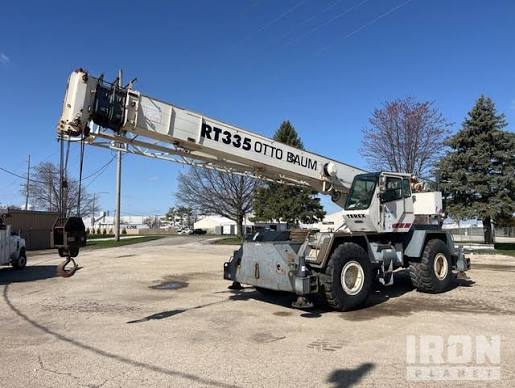

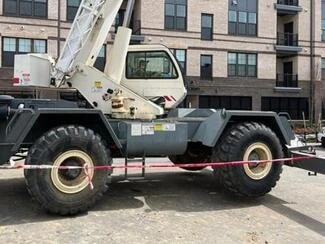

Terex RT 335 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: thecraneclub.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight63,259 lb
Fuel Capacity50.0 gal
Tire Size23.5R25
Operating Voltage12 V
Hydraulic System Fluid Capacity114.0 gal
Alternator Supplied Amperage102 A

Engine

Engine specifications
Engine Model6BT5.9
Displacement359 in³
Power Measured @2,500 rpm
Gross Power152.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,600 rpm
Max Torque414 lb-ft
Engine MakeCummins
Stroke5 in
Bore4 in
Air filter typeDry type

Dimensions

Dimensions specifications
Ground Clearance17 in
Wheelbase150 in
Transport Width122 in
Transport Height124 in
Transport Length466 in
Width w/ Outriggers Extended282 in
Upper Structure Tail Swing Radius108 in
Carrier/Base Length287 in

Transmission

Transmission specifications
Max Speed - Forward24.0 mph
Number of Forward Gears6
Number of Reverse Gears3
Transmission TypeFull powershift

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib1,134 in
Min Height @ Max Raise Angle364 in
Max Elevating Angle75 °
Number of Sections4
Swing Speed3 rpm
