RT625
Rough Terrain Crane
38 specifications
1 / 5

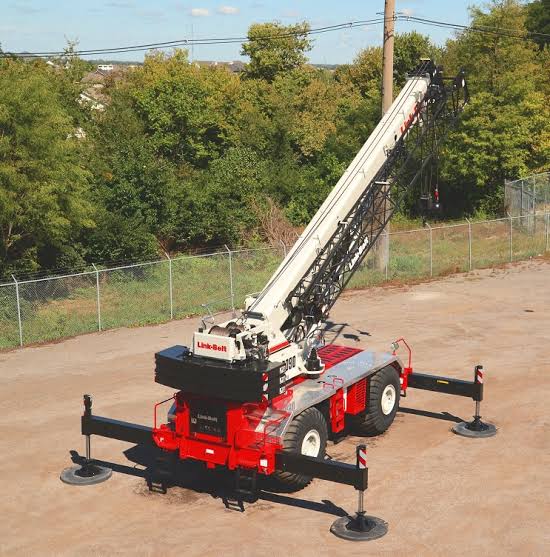

Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 80,680 lb |
|---|---|
| Fuel Capacity | 75.0 gal |
| Tire Size | 29.5x25 |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 153.0 gal |
| Alternator Supplied Amperage | 160 A |
| Engine Oil Capacity | 4.6 gal |
| DEF tank capacity | 5.0 gal |
Engine
| Engine Model | C6.6 |
|---|---|
| Displacement | 409 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 270.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 730 lb-ft |
| Engine Make | Cummins QSB |
| Bore | 4 in |
| Stroke | 5 in |
| Emissions compliance | Tier 4F / Stage IV |
| Crankcase capacity | 3.8 gal |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Wheelbase | 172 in |
| Transport Width | 130 in |
| Transport Height | 156 in |
| Transport Length | 570 in |
| Width w/ Outriggers Extended | 289 in |
| Upper Structure Tail Swing Radius | 167 in |
| Carrier/Base Length | 326 in |
Transmission
| Max Speed - Forward | 18.4 mph |
|---|---|
| Max Speed - Reverse | 18.4 mph |
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 6 |
| Transmission Type | Powershift |
Boom
| Max Height @ Max Raise Angle - no jib | 1,796 in |
|---|---|
| Min Height @ Max Raise Angle | 564 in |
| Max Elevating Angle | 80 ° |
| Number of Sections | 5 |
| Swing Speed | 2 rpm |
| Min Operating Radius | 96 in |
| Max Operating Radius | 1,560 in |
| Height | 2,754 in |
