Grove

RT760

Rough Terrain Crane

Operating Weight
90,886 lb
All rough terrain cranes

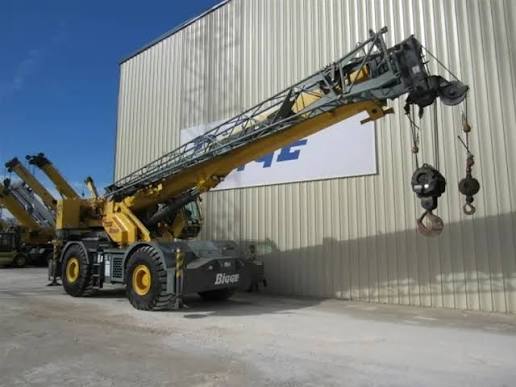

Grove RT760 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: salvagesale.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight90,886 lb
Fuel Capacity60.0 gal
Tire Size29.5 x 25 - 28PR
Operating Voltage12 V
Alternator Supplied Amperage55 A

Engine

Engine specifications
Engine Model6BTA 5.9L
Power Measured @2,500 rpm
Net Power199.9 hp
Number of Cylinders6
Torque Measured @1,500 rpm
Max Torque600 lb-ft
Engine MakeCummins

Dimensions

Dimensions specifications
Ground Clearance19 in
Wheelbase150 in
Transport Width132 in
Transport Height154 in
Transport Length522 in
Width w/ Outriggers Extended300 in
Upper Structure Tail Swing Radius170 in
Carrier/Base Length309,607 in

Transmission

Transmission specifications
Max Speed20.3 mph
Number of Forward Gears6
Number of Reverse Gears6

Boom

Boom specifications
Max Elevating Angle76 °
Number of Sections4
