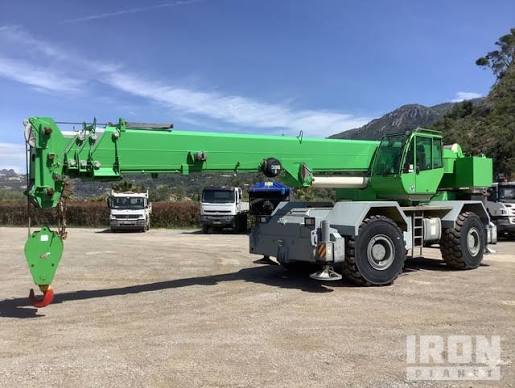

Terex
Grove
RT625
Rough Terrain Crane
38 specifications
Terex
A600
- Operating Weight
- 89,287 lb
- Max Lift Capacity
- 132,277 lb
- Max Speed - Forward
- 18.1 mph
- Gross Power
- 199.9 hp
1 / 5
Image 1 of 5
Specifications
31 data points
Operating Specifications
| Operating Weight | 89,287 lb |
|---|---|
| Fuel Capacity | 79.3 gal |
| Tire Size | 23.5R25 |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
Engine
| Engine Model | QSB6.7 |
|---|---|
| Displacement | 409 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 199.9 hp |
| Aspiration | turbo supercharged |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 547 lb-ft |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Wheelbase | 13 in |
| Transport Width | 119 in |
| Transport Height | 142 in |
| Transport Length | 503 in |
| Width w/ Outriggers Extended | 284 in |
| Upper Structure Tail Swing Radius | 152 in |
| Carrier/Base Length | 294 in |
Transmission
| Max Speed - Forward | 18.1 mph |
|---|---|
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 6 |
| Transmission Type | DANA series 32000: powershift with torque converter |
Boom
| Max Lift Capacity | 132,277 lb |
|---|---|
| Max Height @ Max Raise Angle - no jib | 1,276 in |
| Min Height @ Max Raise Angle | 406 in |
| Max Elevating Angle | 80 ° |
| Number of Sections | 5 |
| Min Operating Radius | 119 in |
| Max Operating Radius | 1,182 in |
