Grove

RT528B

Rough Terrain Crane

Operating Weight
54,200 lb
Max Lift Capacity
56,000 lb
Max Speed - Forward
23.2 mph
Gross Power
130.0 hp
All rough terrain cranes

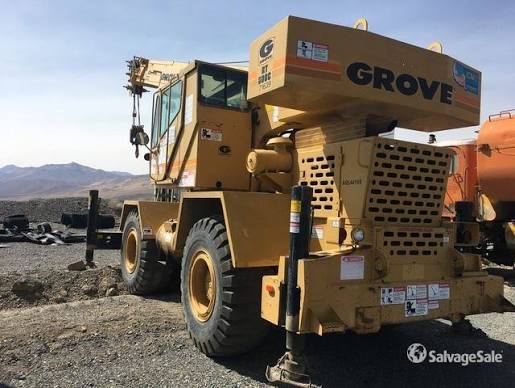

Grove RT528B Rough Terrain Crane
1 / 5
Image 1 of 5
Image: cranetrader.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight54,200 lb
Fuel Capacity60.0 gal
Tire Size20.5X25 24PR
Operating Voltage24 V
Hydraulic System Fluid Capacity88.0 gal
Alternator Supplied Amperage90 A

Engine

Engine specifications
Engine Model8.2L
Displacement500 in³
Power Measured @2,800 rpm
Gross Power130.0 hp
Number of Cylinders4
Aspirationnatural
Torque Measured @1,000 rpm
Max Torque318 lb-ft
Engine MakeDetroit Diesel
Stroke5 in
Bore4 in

Dimensions

Dimensions specifications
Ground Clearance19 in
Wheelbase10 in
Transport Width106 in
Transport Height133 in
Transport Length431 in
Width w/ Outriggers Extended221 in
Upper Structure Tail Swing Radius126 in
Carrier/Base Length240 in

Transmission

Transmission specifications
Max Speed - Forward23.2 mph
Number of Forward Gears6
Number of Reverse Gears6
Transmission Typeremote mounted powershift

Boom

Boom specifications
Max Lift Capacity56,000 lb
Max Height @ Max Raise Angle - no jib1,320 in
Min Height @ Max Raise Angle384 in
Max Elevating Angle75 °
Number of Sections3
Min Operating Radius120 in
Max Operating Radius840 in
