Takeuchi

TB1140

Mini Excavator

Operating Weight
31,306 lb
Max Digging Depth
216 in
Net Power
83.4 hp
All mini excavators

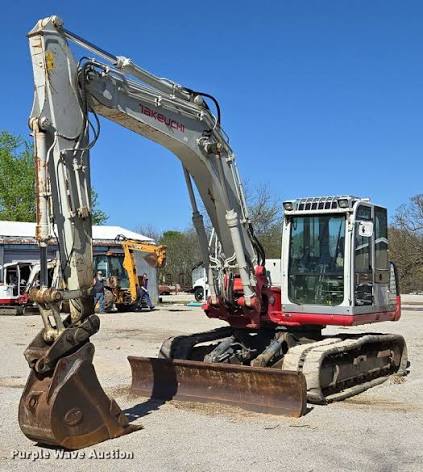

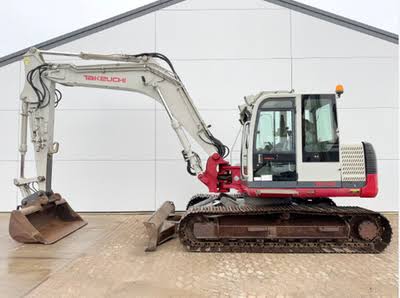

Takeuchi TB1140 Mini Excavator
1 / 5
Image 1 of 5
Image: miniexcavatorcentre.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight31,306 lb
Fuel Capacity61.5 gal
Hydraulic Pump Flow Capacity56.2 gal/min
Hydraulic System Fluid Capacity56.8 gal
Hydraulic System Relief Valve Pressure4,977 psi
Operating Voltage24 V
Alternator Supplied Amperage50 A
Engine Oil Capacity1.1 gal
Cooling System Fluid Capacity1.8 gal

Engine

Engine specifications
Engine ModelBB-4BG1TRE
Displacement264 in³
Power Measured @2,050 rpm
Net Power83.4 hp
Torque Measured @1,400 rpm
Max Torque224 lb-ft

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab110 in
Length of Track on Ground114 in
Tail Swing Radius79 in
Width to Outside of Tracks98 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Number of Track Rollers per Side7
Max Travel Speed3.3 mph
Shoe Size20 in
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth216 in
Max Reach Along Ground337 in
Max Vertical Wall Digging Depth182 in
Max Loading Height246 in
Shipping Length of Unit322 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm
