Yanmar

SV100-2A

Mini Excavator

Operating Weight
21,550 lb
Max Digging Depth
191 in
Net Power
72.0 hp
All mini excavators

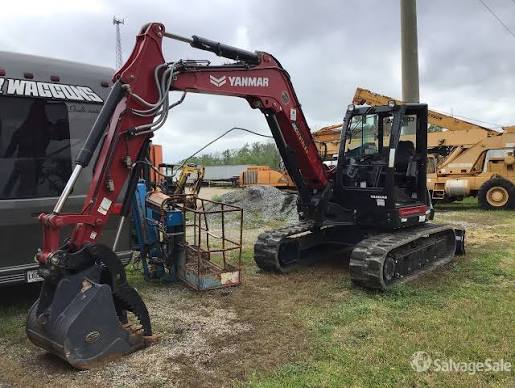

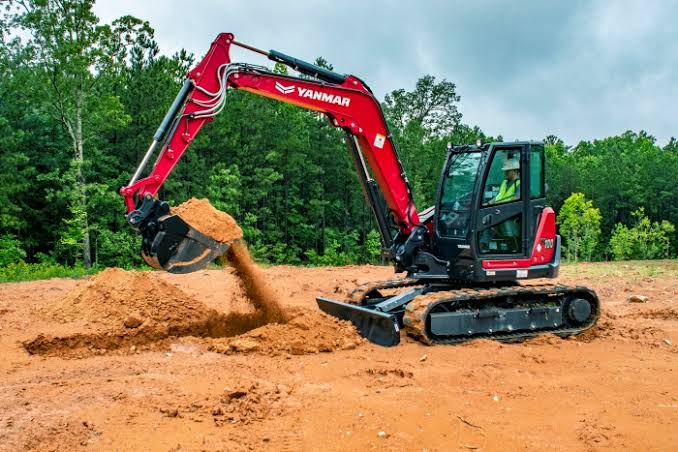

Yanmar SV100-2A Mini Excavator
1 / 5
Image 1 of 5
Image: barkersequipment.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight21,550 lb
Fuel Capacity30.3 gal
Hydraulic Pump Flow Capacity61.5 gal/min
Hydraulic System Relief Valve Pressure12,238 psi

Engine

Engine specifications
Engine Model4TNV98CT-VBV
Power Measured @2,100 rpm
Net Power72.0 hp
AspirationWater-cooled 4-cycle diesel

Weights

Weights specifications
Ground bearing pressure (rubber tracks)6 psi
Rubber Tracks21,550 lb
Steel tracks21,660 lb
Ground bearing pressure (steel tracks)6 psi

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab111 in
Wheelbase121 in
Tail Swing Radius53 in
Width to Outside of Tracks93 in
Overall Height305 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.7 mph
Min Travel Speed1.6 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth191 in
Max Reach Along Ground298 in
Boom Swing - Left60 °
Boom Swing - Right60 °

Bucket

Bucket specifications
Bucket digging Force - SAE12,216 lb
Arm digging Force9,500 lb

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Blades

Blades specifications
Blade Width93 in
Blade Raise19 in
Blade Stroke22 in

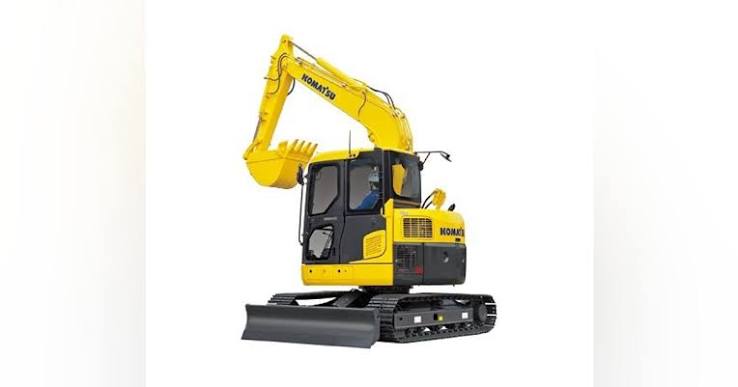

Comparable machines
