IHI

80NX-3

Mini Excavator

Operating Weight
18,100 lb
Max Digging Depth
169 in
Net Power
56.3 hp
All mini excavators

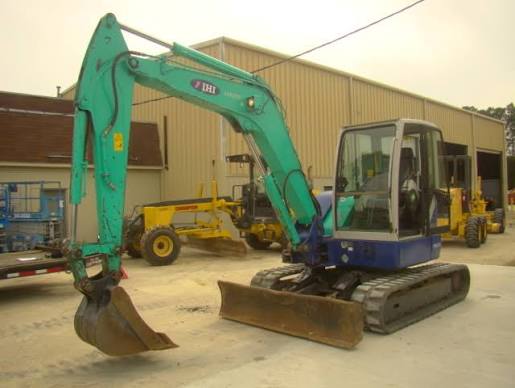

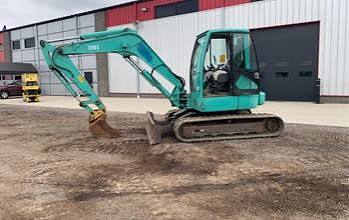

IHI 80NX-3 Mini Excavator
1 / 5
Image 1 of 5
Image: browncountyrental.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight18,100 lb
Fuel Capacity18.5 gal
Hydraulic Pump Flow Capacity51.8 gal/min
Hydraulic System Relief Valve Pressure3,550 psi

Engine

Engine specifications
Engine ModelAA-4JG1
Net Power56.3 hp

Dimensions

Dimensions specifications
Height - Top of Cab102 in
Tail Swing Radius52 in
Width to Outside of Tracks84 in
Removal Counterweight Clearance28 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge66 in
Max Travel Speed2.7 mph
Shoe Size18 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth169 in
Max Vertical Wall Digging Depth131 in
Max Loading Height187 in
Shipping Length of Unit236 in
Max Cutting Height268 in
Shipping Height of Unit102 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
