Takeuchi

TB153FR

Mini Excavator

Operating Weight
12,450 lb
Max Digging Depth
155 in
Net Power
38.2 hp
All mini excavators

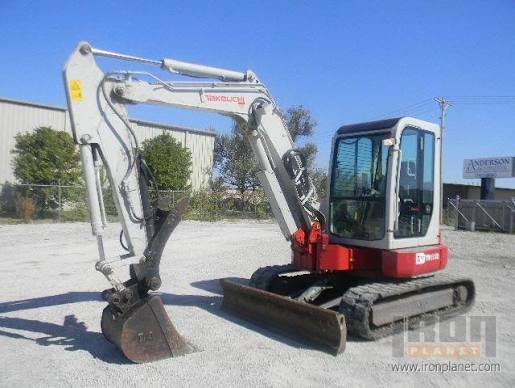

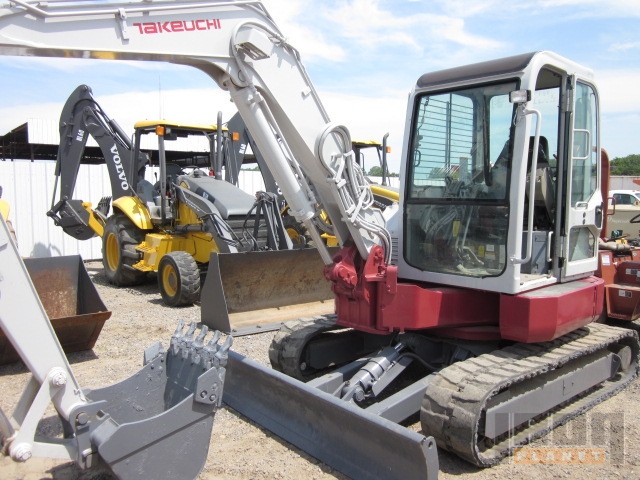

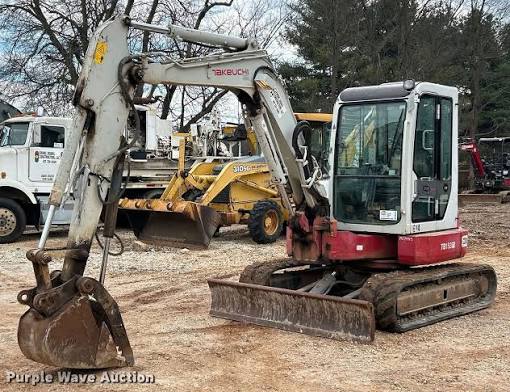

Takeuchi TB153FR Mini Excavator
1 / 5
Image 1 of 5
Image: ironplanet.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight12,450 lb
Fuel Capacity15.9 gal
Hydraulic Pump Flow Capacity29.6 gal/min
Hydraulic System Fluid Capacity29.1 gal
Hydraulic System Relief Valve Pressure3,000 psi
Operating Voltage12 V
Alternator Supplied Amperage72 A
Engine Oil Capacity2.0 gal
Cooling System Fluid Capacity2.2 gal

Engine

Engine specifications
Engine Model4TNV88-PTBZ1
Displacement134 in³
Power Measured @2,300 rpm
Net Power38.2 hp
Number of Cylinders4
Torque Measured @1,400 rpm
Max Torque107 lb-ft

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab102 in
Tail Swing Radius44 in
Width to Outside of Tracks79 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Number of Track Rollers per Side5
Max Travel Speed3.1 mph
Shoe Size16 in
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth155 in
Max Reach Along Ground245 in
Max Vertical Wall Digging Depth120 in
Max Loading Height154 in
Shipping Length of Unit211 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
