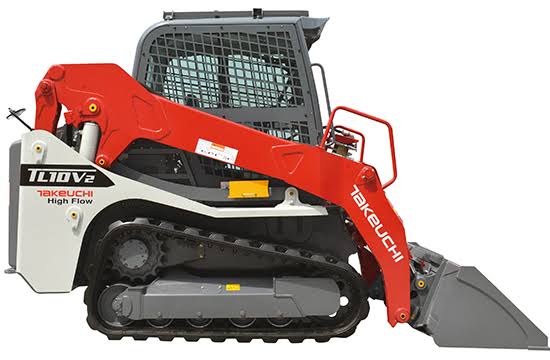

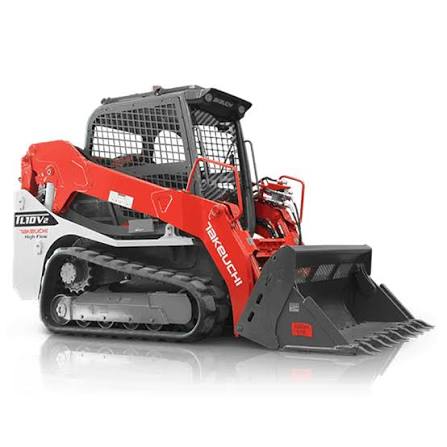

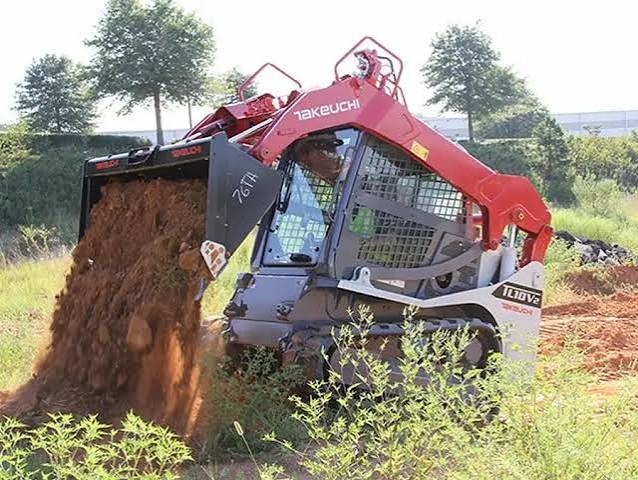

Takeuchi
TL10
- Operating Weight
- 10,516 lb
- Max Speed - high range
- 7.2 mph
- Displacement
- 230 in³
- Gross Power
- 92.0 hp
1 / 5
Image 1 of 5
Specifications
28 data points
Operating Specifications
| Operating Weight | 10,516 lb |
|---|---|
| Max Speed - high range | 7.2 mph |
| Max Speed - low range | 4.6 mph |
| Fuel Capacity | 23.8 gal |
| Cooling System Fluid Capacity | 4.1 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 80 A |
| Engine Oil Capacity | 3.5 gal |
Engine
| Engine Model | V3800CR |
|---|---|
| Displacement | 230 in³ |
| Power Measured @ | 2,400 rpm |
| Gross Power | 92.0 hp |
| Torque Measured @ | 1,500 rpm |
| Engine Make | Kubato |
| Peak Torque | 247 lb-ft |
| Horsepower - Gross | 92.0 hp |
Hydraulic System
| Relief Valve Pressure | 3,046 psi |
|---|---|
| Auxiliary hydraulic flow | 20.0 gal/min |
| Hydraulic Reservoir | 12.7 gal |
Undercarriage
| Ground Pressure | 5 psi |
|---|
General Specifications
| Operating Width IN. (CM) | 69.7 (177.0) Starting 2016 Model Year |
|---|---|
| Engine Power HP (KW) | 92 (68.6) Starting 2016 Model Year |
| OPERATING LOAD LBS. (KG) | 2,403 (1,090) Starting 2016 Model Year |
Loader
| Operating Load | 2,403 lb |
|---|---|
| Breakout Force | — |
| Operating Width | 70 in |
| Tipping Load | 3,435 lb |
| Bucket Breakout Force | 7,400 lb |
