Takeuchi

TL120

Compact Track Loader

Operating Weight
6,074 lb
Max Speed - high range
5.8 mph
Displacement
122 in³
Gross Power
52.0 hp
All compact track loaders

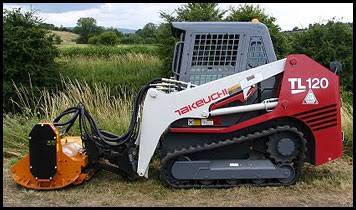

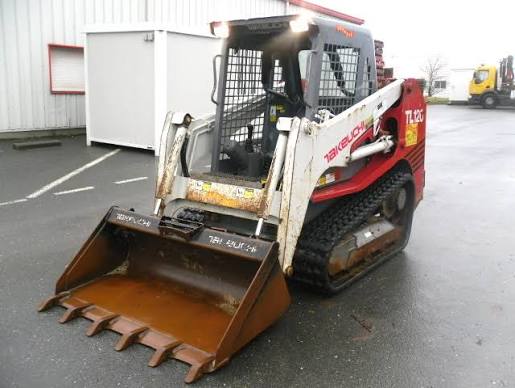

Takeuchi TL120 Compact Track Loader
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,074 lb
Max Speed - high range5.8 mph
Max Speed - low range4.0 mph
Max Speed5.8 mph
Fuel Capacity15.4 gal
Hydraulic System Fluid Capacity7.8 gal
Cooling System Fluid Capacity2.9 gal
Operating Voltage12 V
Alternator Supplied Amperage40 A
Engine Oil Capacity2.0 gal
Static Tipping Load3,550 lb
Breakout Force Bucket4,811 lb

Engine

Engine specifications
Engine Model4TNV84T
Displacement122 in³
Power Measured @2,800 rpm
Gross Power52.0 hp
Net Power51.7 hp
Number of Cylinders4
Torque Measured @1,680 rpm
Max Torque113 lb-ft
Peak Torque123 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow15.1 gal/min
Relief Valve Pressure299 psi
Dump Time2.6 s
Lower Time2.4 s
Raise Time3.6 s
Pump Flow Capacity15.1 gal/min

Dimensions

Dimensions specifications
Ground Clearance1 in
Height - Top of Cab78 in
Reach at Max Lift and Dump24 in
Width Over Tracks59 in
Length with Bucket127 in
Clearance at Max Lift and Dump115 in
Turning Radius from Center - inc bucket81 in
Turning Radius from Center - machine rear59 in
Clearance at Full Height and Dump90 in
Reach at Dump Height24 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Length of Track on Ground49 in
Width of Track12 in
Number of Track Rollers per Side4
Track Shoe Width12 in

Loader

Loader specifications
Tipping Angle3,549 °
Operating Load1,246 lb
