Takeuchi

TL130

Compact Track Loader

Operating Weight
7,646 lb
Max Speed - high range
6.3 mph
Displacement
203 in³
Gross Power
67.0 hp
All compact track loaders

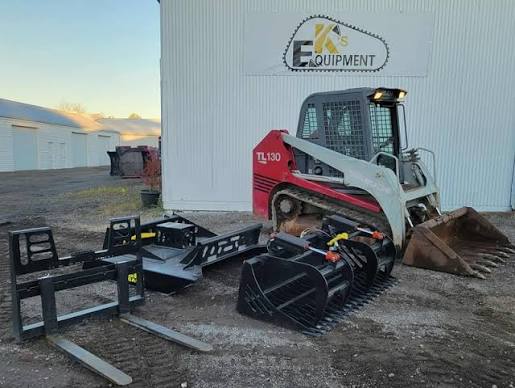

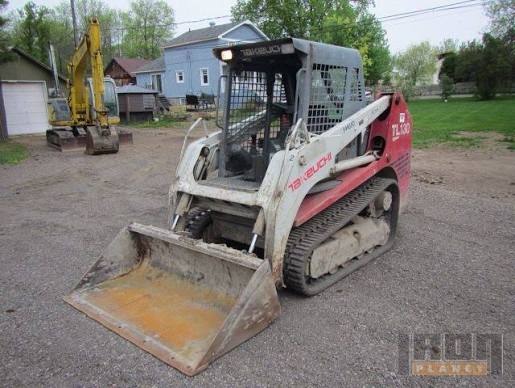

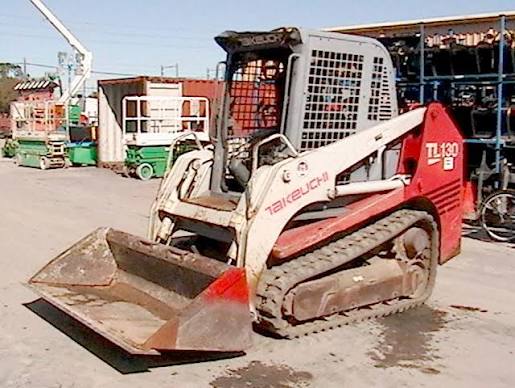

Takeuchi TL130 Compact Track Loader
1 / 5
Image 1 of 5
Image: shop.equipmentshare.com

Specifications

41 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,646 lb
Max Speed - high range6.3 mph
Max Speed - low range4.4 mph
Max Speed4.4 mph
Fuel Capacity19.8 gal
Hydraulic System Fluid Capacity10.6 gal
Cooling System Fluid Capacity2.9 gal
Operating Voltage12 V
Alternator Supplied Amperage40 A
Engine Oil Capacity2.7 gal
Static Tipping Load4,630 lb
Breakout Force Bucket6,729 lb

Engine

Engine specifications
Engine Model4TNV98
Displacement203 in³
Power Measured @2,450 rpm
Gross Power67.0 hp
Number of Cylinders4
Torque Measured @1,600 rpm
Peak Torque181 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow18.0 gal/min
Relief Valve Pressure2,986 psi
Dump Time2.7 s
Lower Time2.7 s
Raise Time4.2 s

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab84 in
Reach at Max Lift and Dump29 in
Width Over Tracks62 in
Length with Bucket135 in
Clearance at Max Lift and Dump120 in
Turning Radius from Center - inc bucket62 in
Turning Radius from Center - machine rear82 in
Clearance at Full Height and Dump94 in
Reach at Dump Height29 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Length of Track on Ground55 in
Width of Track2 in
Number of Track Rollers per Side5

Loader

Loader specifications
Tipping Angle4,630 °
Operating Load1,620 lb
Breakout Force—
