Takeuchi

TL220

Compact Track Loader

Operating Weight
6,162 lb
Max Speed - high range
5.8 mph
Displacement
122 in³
Gross Power
53.5 hp
All compact track loaders

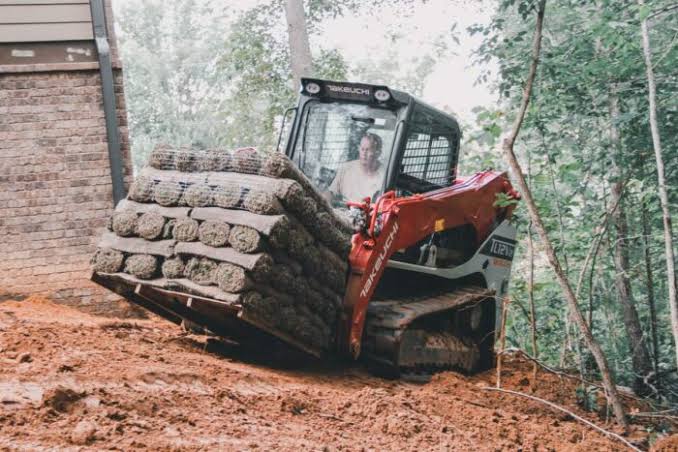

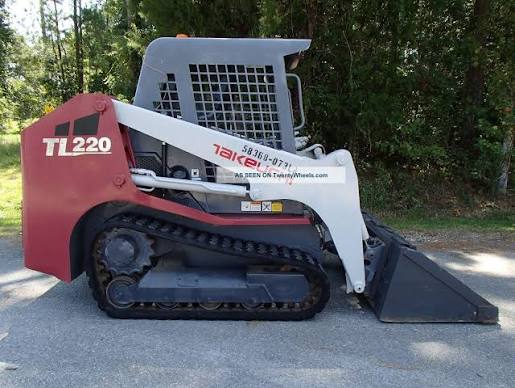

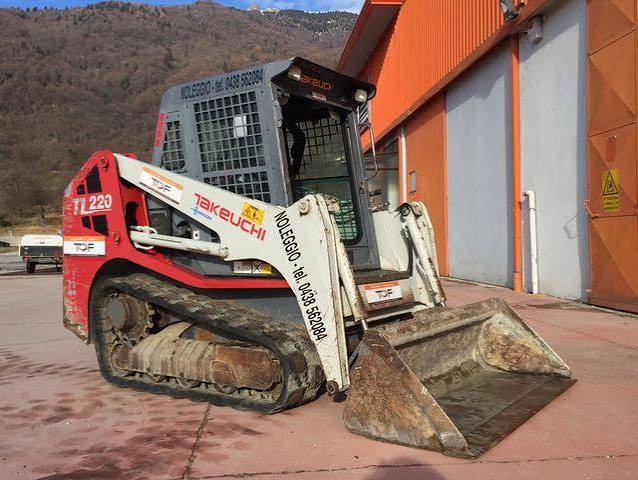

Takeuchi TL220 Compact Track Loader
1 / 5
Image 1 of 5
Image: rentalex.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,162 lb
Bucket Capacity - heaped0.41 yd³
Max Speed - high range5.8 mph
Max Speed - low range4.1 mph
Max Speed5.8 mph
Fuel Capacity15.1 gal
Hydraulic System Fluid Capacity11.9 gal
Cooling System Fluid Capacity3.0 gal
Operating Voltage12 V
Alternator Supplied Amperage40 A
Engine Oil Capacity2.0 gal
Static Tipping Load3,550 lb

Engine

Engine specifications
Engine Model4TNV84
Displacement122 in³
Power Measured @2,800 rpm
Gross Power53.5 hp
Net Power51.2 hp
Number of Cylinders4
AspirationTurbocharged
Torque Measured @2,000 rpm
Max Torque120 lb-ft
Peak Torque120 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow15.1 gal/min
Relief Valve Pressure3,000 psi

Dimensions

Dimensions specifications
Ground Clearance11 in
Height - Top of Cab78 in
Width to Outside of Tracks59 in
Reach at Max Lift and Dump24 in
Length with Bucket on Ground127 in
Width Over Tracks59 in
Length with Bucket128 in
Clearance at Max Lift and Dump90 in
Turning Radius from Center - inc bucket79 in
Turning Radius from Center - machine rear58 in
Clearance at Full Height and Dump90 in
Reach at Dump Height24 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Length of Track on Ground49 in
Width of Track12 in
Number of Track Rollers per Side4
Track Gauge46 in
Track Shoe Width12 in

Loader

Loader specifications
Bucket Capacity0.50 yd³
Tipping Angle3,550 °
Operating Load1,246 lb
