Takeuchi

TL230

Compact Track Loader

Operating Weight
8,179 lb
Displacement
201 in³
All compact track loaders

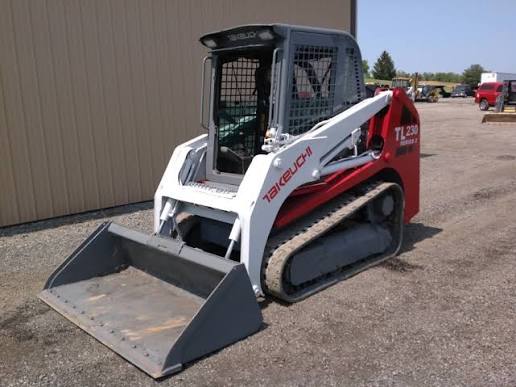

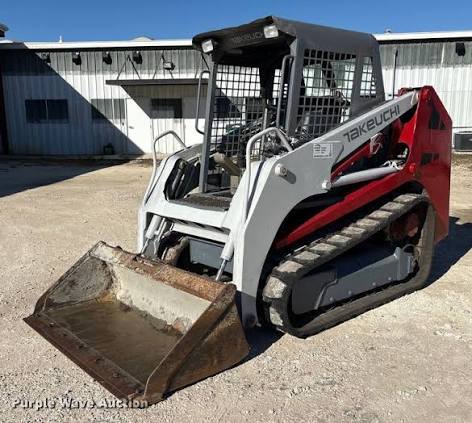

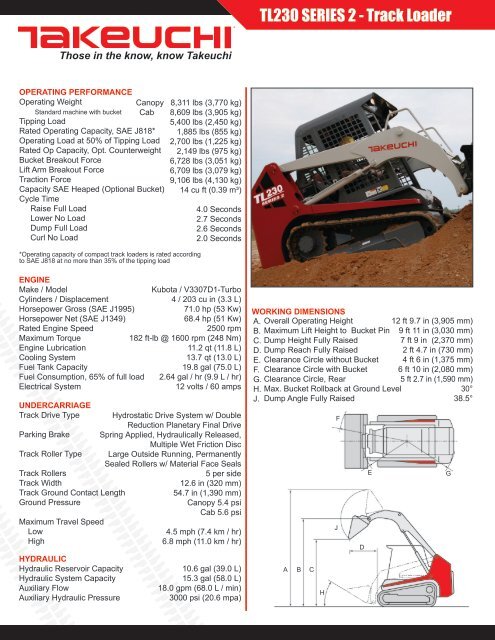

Takeuchi TL230 Compact Track Loader
1 / 5
Image 1 of 5
Image: yumpu.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,179 lb
Bucket Capacity - heaped0.71 yd³
Max Speed6.8 mph
Static Tipping Load4,630 lb

Engine

Engine specifications
Engine Model4TNV98
Displacement201 in³
Power Measured @2,500 rpm
Net Power67.2 hp
Number of Cylinders4
Max Torque179 lb-ft

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab89 in
Width to Outside of Tracks62 in
Length with Bucket on Ground135 in
Clearance at Full Height and Dump94 in
Reach at Dump Height29 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Number of Track Rollers per Side5
Track Gauge50 in
Track Shoe Width13 in
