Terex

1605M

Excavator

Net Power
140.9 hp
All excavators

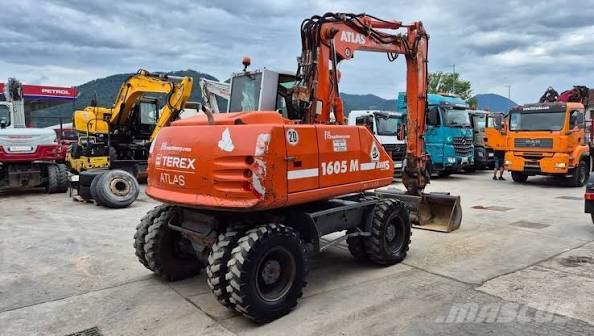

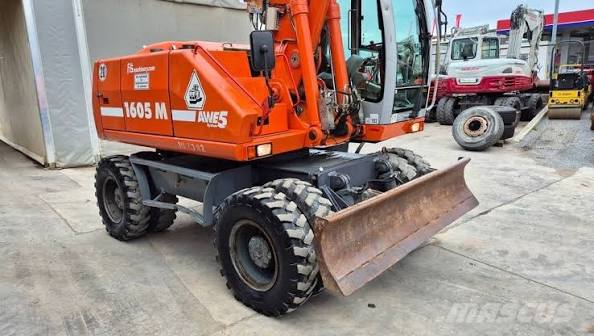

Terex 1605M Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity69.8 gal
Hydraulic Pump Flow Capacity68.7 gal/min
Hydraulic System Fluid Capacity47.6 gal
Hydraulic System Relief Valve Pressure5,221 psi
Engine Oil Capacity2.7 gal
Operating Voltage24 V
Hydraulic Pump Type1x axial piston pump
Tire Size10.00-20

Engine

Engine specifications
Engine ModelBF6M 2012 C
Displacement366 in³
Power Measured @2,000 rpm
Gross Power147.6 hp
Net Power140.9 hp
AspirationTurbocharged

Dimensions

Dimensions specifications
Height - Top of Cab121 in
Wheelbase100 in
Overall Width8 in
Upper Structure Clearance49 in

Transmission

Transmission specifications
Max Travel Speed12.5 mph

Bucket

Bucket specifications
Reference Bucket Capacity1.10 yd³
Maximum Bucket Capacity1.50 yd³
Minimum Bucket Capacity0.90 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
Swing Torque30,608 lb-ft

Boom/Stick Mobile Excavator Option 1

Boom/Stick Mobile Excavator Option 1 specifications
Max Digging Depth202 in
Max Cutting Height383 in

Boom/Stick Mobile Excavator Option 2

Boom/Stick Mobile Excavator Option 2 specifications
Max Digging Depth221 in
Max Cutting Height398 in

Boom/Stick Mobile Excavator Option 3

Boom/Stick Mobile Excavator Option 3 specifications
Max Digging Depth193 in
Max Cutting Height361 in

Boom/Stick Mobile Excavator Option 4

Boom/Stick Mobile Excavator Option 4 specifications
Max Digging Depth215 in
Max Cutting Height374 in
