Terex
Liugong
936E
Excavator
Specifications pending
1 / 5

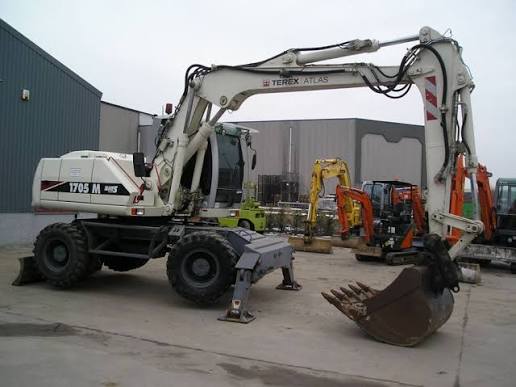

Image 1 of 5
Specifications
38 data points
Operating Specifications
| Fuel Capacity | 69.8 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 68.7 gal/min |
| Hydraulic System Fluid Capacity | 47.6 gal |
| Hydraulic System Relief Valve Pressure | 5,220 psi |
| Engine Oil Capacity | 2.7 gal |
| Operating Voltage | 24 V |
| Hydraulic Pump Type | piston |
| Tire Size | 10.00-20 |
Engine
| Engine Model | BF6M 2012 C |
|---|---|
| Displacement | 366 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 148.0 hp |
| Aspiration | Turbocharged |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 125 in |
| Wheelbase | 100 in |
| Overall Width | 8 in |
| Upper Structure Clearance | 49 in |
| Overall Width - Outriggers Down | 138 in |
Transmission
| Max Travel Speed | 18.6 mph |
|---|---|
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 224 in |
|---|---|
| Max Reach Along Ground | 362 in |
Bucket
| Reference Bucket Capacity | 1.50 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.50 yd³ |
| Minimum Bucket Capacity | 1.10 yd³ |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|---|
| Swing Torque | 28,760 lb-ft |
Boom/Stick Mobile Excavator Option 1
| Max Digging Depth | 202 in |
|---|---|
| Max Cutting Height | 380 in |
| Max Reach Along Ground | 343 in |
Boom/Stick Mobile Excavator Option 2
| Max Digging Depth | 226 in |
|---|---|
| Max Cutting Height | 329 in |
Boom/Stick Mobile Excavator Option 3
| Max Digging Depth | 202 in |
|---|---|
| Max Cutting Height | 380 in |
Boom/Stick Mobile Excavator Option 4
| Max Digging Depth | 221 in |
|---|---|
| Max Cutting Height | 414 in |
