Terex

2205M

Excavator

Max Digging Depth
266 in
Net Power
182.0 hp
All excavators

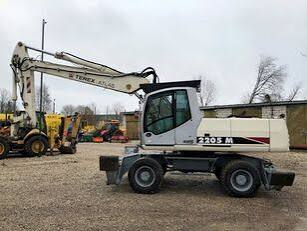

Terex 2205M Excavator
1 / 5
Image 1 of 5
Image: rent1usa.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity105.7 gal
Hydraulic Pump Flow Capacity121.6 gal/min
Hydraulic System Fluid Capacity58.2 gal
Hydraulic System Relief Valve Pressure5,511 psi
Engine Oil Capacity3.7 gal
Operating Voltage24 V
Hydraulic Pump Typepiston pump
Tire Size10.00-20

Engine

Engine specifications
Engine ModelBF6M 2012 C
Displacement366 in³
Power Measured @2,000 rpm
Net Power182.0 hp
AspirationTurbocharged

Dimensions

Dimensions specifications
Height - Top of Cab124 in
Wheelbase107 in
Overall Width9 in
Upper Structure Clearance50 in
Overall Width - Outriggers Down167 in

Transmission

Transmission specifications
Max Travel Speed12.4 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth266 in
Max Reach Along Ground411 in

Bucket

Bucket specifications
Reference Bucket Capacity1.50 yd³
Maximum Bucket Capacity1.80 yd³
Minimum Bucket Capacity0.99 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
Swing Torque49,859 lb-ft

Boom/Stick Mobile Excavator Option 1

Boom/Stick Mobile Excavator Option 1 specifications
Max Digging Depth247 in
Max Cutting Height432 in

Boom/Stick Mobile Excavator Option 2

Boom/Stick Mobile Excavator Option 2 specifications
Max Digging Depth267 in
Max Cutting Height448 in

Boom/Stick Mobile Excavator Option 3

Boom/Stick Mobile Excavator Option 3 specifications
Max Digging Depth230 in
Max Cutting Height356 in

Boom/Stick Mobile Excavator Option 4

Boom/Stick Mobile Excavator Option 4 specifications
Max Digging Depth260 in
Max Cutting Height374 in
