Terex

3-75E

Walk-Behind Compactor

Operating Weight
74,999 lb
Drum Width
120 in
Gross Power
350.0 hp
All walk/tow behind compactors

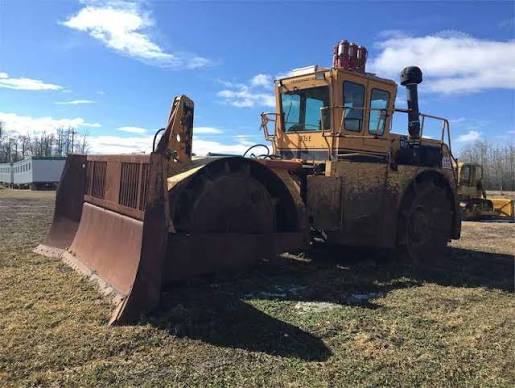

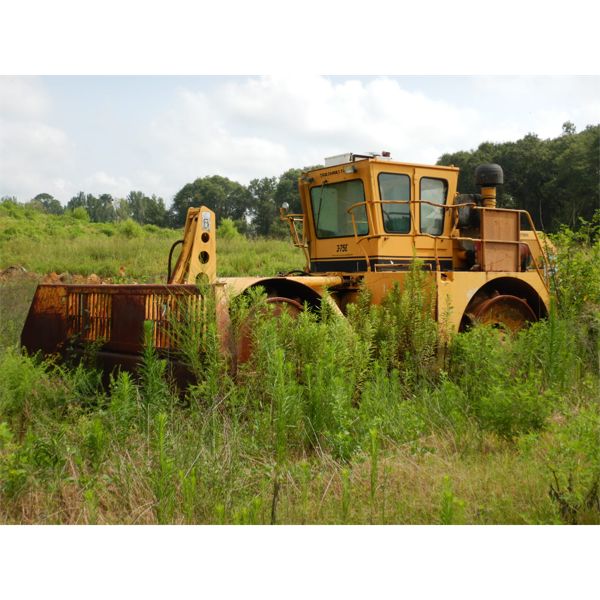

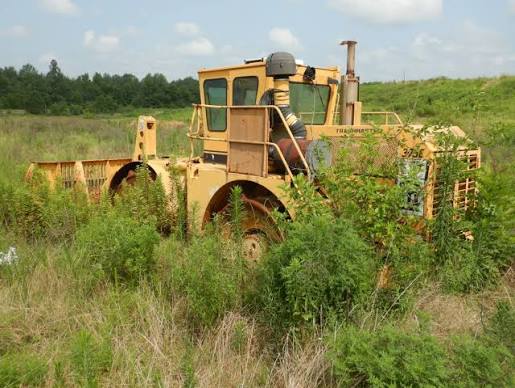

Terex 3-75E Walk-Behind Compactor
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Operating Weight74,999 lb
Hydraulic System Fluid Capacity55.0 gal
Cooling System Fluid Capacity15.1 gal
Engine Oil Capacity11.9 gal

Engine

Engine specifications
Engine ModelQSX-15
Gross Power350.0 hp

Dimensions

Dimensions specifications
Height - Top of Cab145 in
Width Over Tires120 in
Width Over Wheels120 in
Overall Length w/ Blade150 in

Drum

Drum specifications
Drum Width120 in
Drum Diameter76 in

Blades

Blades specifications
Blade Height72 in
Blade Width168 in

Wheels

Wheels specifications
Front Wheels Drum Diameter76 in
Front Wheels Drum Width120 in
Rear Wheels Drum Diameter76 in
Rear Wheels Drum Width120 in
