Zoomlion

YZK20

Walk-Behind Compactor

Operating Weight
46,297 lb
Max Speed
6.3 mph
Drum Width
85 in
Gross Power
189.1 hp
All walk/tow behind compactors
Zoomlion YZK20 Walk-Behind Compactor
1 / 5
Image 1 of 5
Image: global-ce.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Operating Weight46,297 lb
Max Speed6.3 mph
Operating Voltage24 V

Engine

Engine specifications
Engine ModelBF6L913C
Power Measured @2,500 rpm
Gross Power189.1 hp

Dimensions

Dimensions specifications
Height - Top of Cab127 in
Width Over Tires95 in
Overall Length w/o Blade245 in

Tires & Wheels

Tires & Wheels specifications
Tires20.5-25

Drum

Drum specifications
Drum Width85 in
Drum Diameter63 in
Centrifugal Force - High62,947 lb
Nominal Amplitude - High0 in
Vibration Frequency 129 vpm
Vibratory Frequency 235 vpm
Centrifugal Force - Low89,924 lb
Nominal Amplitude - Low0 in

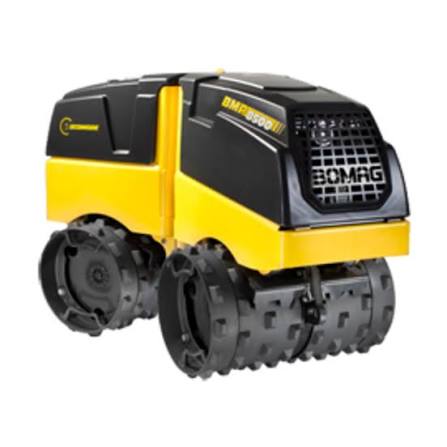

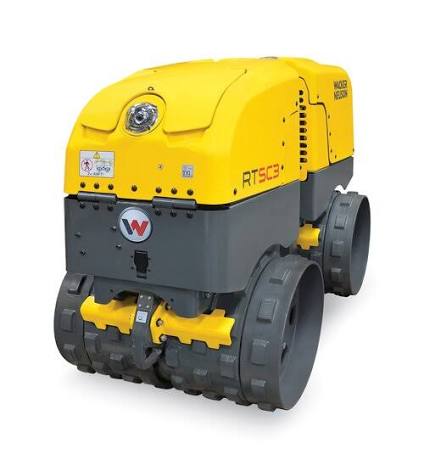

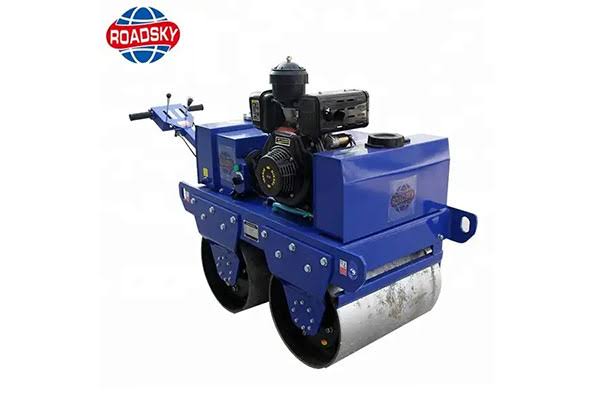

Comparable machines
