Terex

MT3300

Off-Highway Truck

Max Speed
33.0 mph
Gross Power
1,350.0 hp
Net Power
1,275.0 hp
All off-highway trucks

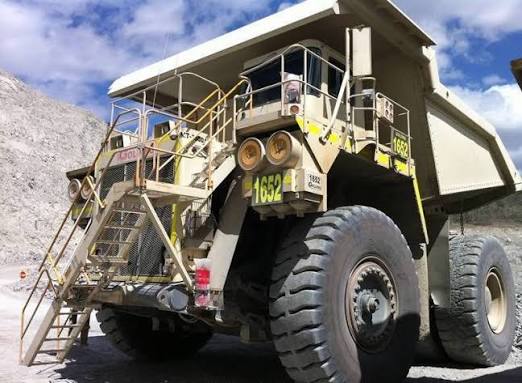

Terex MT3300 Off-Highway Truck
1 / 5
Image 1 of 5
Image: lennonheavyequipment.com.au

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity599.9 gal
Tire Size33.00R51 Radial
Engine Oil Capacity56.8 gal
Cooling System Fluid Capacity80.1 gal
Hydraulic System Fluid Capacity214.8 gal
Operating Voltage24 V
Alternator Supplied Amperage100 A

Engine

Engine specifications
Engine ModelK1500E
Gross Power1,350.0 hp
Net Power1,275.0 hp
Number of Cylinders12
Aspiration100 amps
Rated Engine Speed215 rpm

Weights

Weights specifications
Empty Weight232,000 lb
Loaded Weight532,000 lb
Weight Distribution Front - loaded33.1 %
Weight Distribution Rear - loaded66.9 %
Weight Distribution Front - empty56.8 %
Weight Distribution Rear - empty43.3 %

Dimensions

Dimensions specifications
Wheelbase209 in
Overall Length481 in
Overall Width257 in
Overall Height252 in
Dump Height426 in
Dump Ground Clearance48 in

Transmission

Transmission specifications
Max Speed33.0 mph

Service Refill Capacities

Service Refill Capacities specifications
Brake/Hoist Hydraulic Tank299,967.3 gal

Dump

Dump specifications
Dump Angle45 °
Raise Time20.0 s
Lower Time9.0 s
Load Capacity - heaped113.79 yd³
Load Capacity - Struck82.49 yd³
