Terex

TA35

Off-Highway Truck

Operating Weight
139,509 lb
Max Speed
33.5 mph
Gross Power
400.0 hp
Net Power
388.0 hp
All off-highway trucks

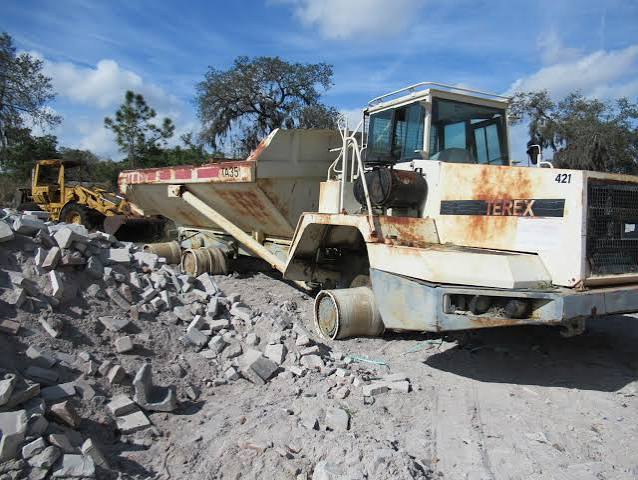

Terex TA35 Off-Highway Truck
1 / 5
Image 1 of 5
Image: marketbook.ca

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity118.9 gal
Tire Size26.5R25
Engine Oil Capacity8.5 gal
Cooling System Fluid Capacity17.7 gal
Hydraulic System Fluid Capacity87.2 gal
Operating Voltage24 V
Alternator Supplied Amperage100 A
Transmission Fluid Capacity16.2 gal

Engine

Engine specifications
Engine ModelSeries 60
Displacement855 in³
Power Measured @2,000 rpm
Gross Power400.0 hp
Net Power388.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,200 rpm
Max Torque1,445 lb-ft
MakeDetroit Diesel

Weights

Weights specifications
Operating Weight139,509 lb
Total Empty64,547 lb
Front Axle - empty33,258 lb
Total Loaded139,506 lb
Rear Axle - empty15,582 lb
Front Axle - loaded38,094 lb
Rear Axle - loaded50,705 lb
Center Axle - empty15,707 lb
Center Axle - loaded50,705 lb

Dimensions

Dimensions specifications
Ground Clearance22 in
Wheelbase209 in
Overall Length430 in
Overall Width126 in
Overall Height154 in
Dump Height272 in
Dump Ground Clearance33 in

Transmission

Transmission specifications
Max Speed33.5 mph
Transmission TypeAllison HD4560 fully automatic
Number of Forward Gears6
Number of Reverse Gears1

Drive System

Drive System specifications
Drive Config6x6

Articulating/Rigid

Articulating/Rigid specifications
Articulating/RigidArticulated

Dump

Dump specifications
Rated Payload74,956 lb
Dump Angle66 °
Raise Time12.5 s
Lower Time8.0 s
Capacity - Heaped27.49 yd³
Capacity - Struck20.30 yd³
