Volvo
A35E
Off-Highway Truck
44 specifications
1 / 5

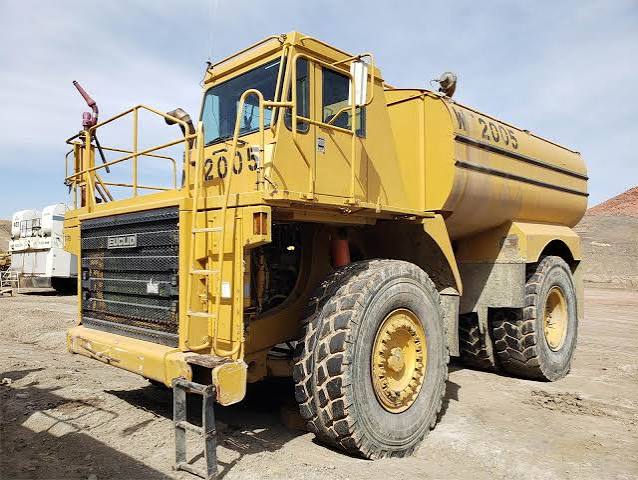

Image 1 of 5
Specifications
41 data points
Operating Specifications
| Fuel Capacity | 185.0 gal |
|---|---|
| Tire Size | 24.00-35(36)E3 |
| Engine Oil Capacity | 16.1 gal |
| Cooling System Fluid Capacity | 50.1 gal |
| Hydraulic System Fluid Capacity | 72.0 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 75 A |
| Steering System Fluid Capacity | 26.0 gal |
| Brake/Hoist System Fluid Capacity | 46.0 gal |
Engine
| Engine Model | KTTA19-C |
|---|---|
| Displacement | 1,150 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 700.1 hp |
| Net Power | 667.9 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged Aftercooled |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 2,014 lb-ft |
Weights
| Empty Weight | 85,359 lb |
|---|---|
| Loaded Weight | 211,644 lb |
| Weight Distribution Front - loaded | 32.0 % |
| Weight Distribution Rear - loaded | 68.0 % |
| Weight Distribution Front - empty | 49.0 % |
| Weight Distribution Rear - empty | 51.0 % |
Dimensions
| Ground Clearance | 30 in |
|---|---|
| Wheelbase | 169 in |
| Overall Length | 366 in |
| Overall Width | 175 in |
| Overall Height | 168 in |
| Dump Height | 352 in |
| Dump Ground Clearance | 30 in |
Transmission
| Max Speed | 35.8 mph |
|---|---|
| Transmission Type | Allison CLT-6063 |
| Number of Gears - Forward | 6 |
| Number of Gears - Reverse | 2 |
Dump
| Rated Payload | 126,287 lb |
|---|---|
| Dump Angle | 60 ° |
| Raise Time | 10.0 s |
| Lower Time | 14.0 s |
| Load Capacity - heaped | 47.10 yd³ |
| Load Capacity - Struck | 32.70 yd³ |
