Volvo

A35E

Off-Highway Truck

Operating Weight
61,950 lb
Max Speed
35.4 mph
Gross Power
419.0 hp
Net Power
414.0 hp
All off-highway trucks

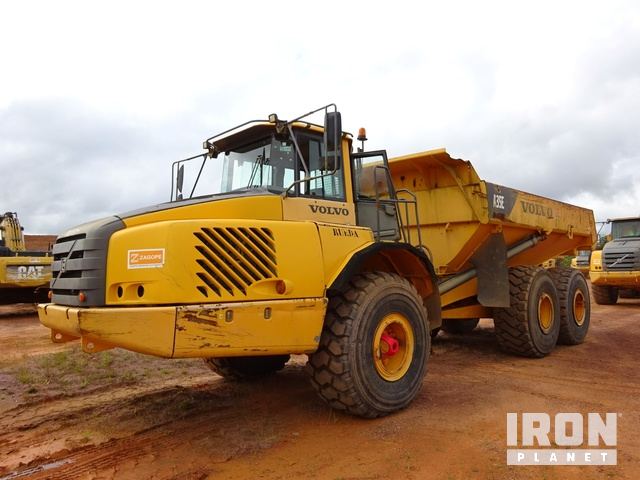

Volvo A35E Off-Highway Truck
1 / 5
Image 1 of 5
Image: eu.ironplanet.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity126.8 gal
Tire Size265R25
Engine Oil Capacity13.3 gal
Cooling System Fluid Capacity26.4 gal
Hydraulic System Fluid Capacity69.2 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A
Transmission Fluid Capacity10.0 gal

Engine

Engine specifications
Engine ModelD12D AEE3
Displacement732 in³
Power Measured @1,800 rpm
Gross Power419.0 hp
Net Power414.0 hp
Number of Cylinders6
AspirationTurbocharged and Intercooled
Torque Measured @1,400 rpm
Max Torque1,549 lb-ft
MakeVolvo

Weights

Weights specifications
Operating Weight61,950 lb
Total Empty61,950 lb
Front Axle - empty32,408 lb
Total Loaded135,805 lb
Rear Axle - empty29,542 lb
Front Axle - loaded39,022 lb
Rear Axle - loaded96,783 lb

Dimensions

Dimensions specifications
Ground Clearance30 in
Wheelbase181 in
Overall Length441 in
Overall Width128 in
Overall Height146 in
Dump Height284 in
Dump Ground Clearance36 in

Transmission

Transmission specifications
Max Speed35.4 mph
Transmission TypePT 2509
Number of Forward Gears9
Number of Reverse Gears3

Drive System

Drive System specifications
Drive Config6X6

Articulating/Rigid

Articulating/Rigid specifications
Articulating/RigidArticulated

Dump

Dump specifications
Rated Payload73,855 lb
Dump Angle70 °
Raise Time12.0 s
Lower Time10.0 s
Capacity - Heaped26.80 yd³
Capacity - Struck20.90 yd³
