Terex

33-11C

Off-Highway Truck

Max Speed
39.2 mph
Net Power
839.5 hp
All off-highway trucks

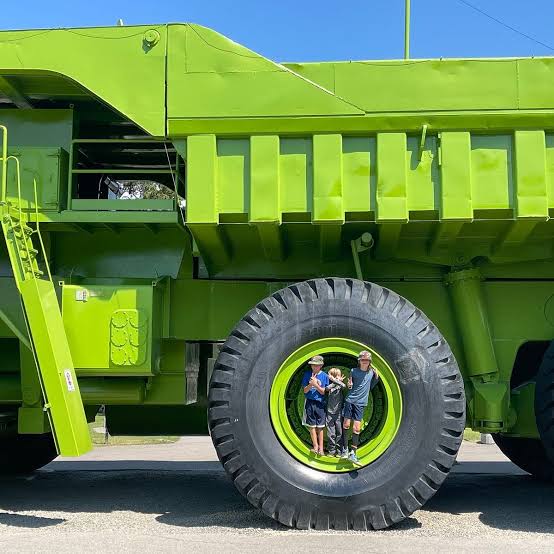

Terex 33-11C Off-Highway Truck
1 / 5
Image 1 of 5
Image: machinerylink.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity325.0 gal
Tire Size24.00 x 49-42PR
Alternator Supplied Amperage—

Engine

Engine specifications
Engine ModelDD 16V-92TA
Net Power839.5 hp

Weights

Weights specifications
Empty Weight115,677 lb
Loaded Weight285,653 lb

Dimensions

Dimensions specifications
Wheelbase180 in
Overall Length411 in
Overall Width186 in
Overall Height190 in

Transmission

Transmission specifications
Max Speed39.2 mph
Transmission TypeAllison DP-8961
Number of Gears - Forward6
Number of Gears - Reverse1

Service Refill Capacities

Service Refill Capacities specifications
Brake/Hoist Hydraulic Tank169,957.9 gal

Dump

Dump specifications
Rated Payload169,976 lb
Load Capacity - heaped64.80 yd³
Load Capacity - Struck51.49 yd³
