Terex

PR600

Cold Planer

Operating Weight - Full Load
90,600 lb
Cutting Width
86 in
Displacement
915 in³
Gross Power
600.0 hp
All cold planers/milling machines

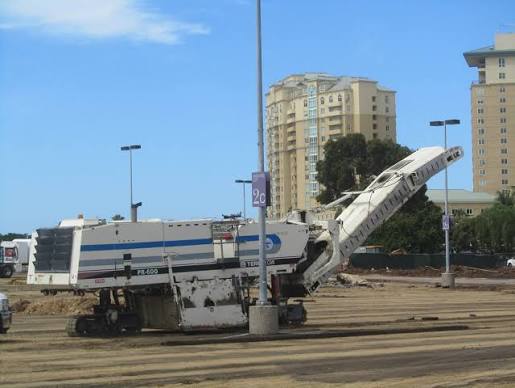

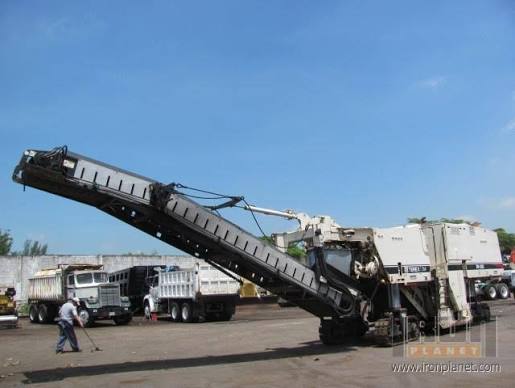

Terex PR600 Cold Planer
1 / 5
Image 1 of 5
Image: marketbook.com.na

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight - Full Load90,600 lb
Operating Speed1.8 mph
Travel Speed3.2 mph
Fuel Capacity350.1 gal
Water Spray System Fluid Capacity900.8 gal
Shipping Weight - Empty81,300 lb
Hydraulic System Fluid Capacity90.1 gal
Operating Voltage24 V
Alternator Supplied Amperage100 A

Engine

Engine specifications
Displacement915 in³
Power Measured @2,100 rpm
Gross Power600.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Shipping Height128 in
Shipping Width102 in
Operating Length619 in
Max Truck Clearance192 in

Track

Track specifications
Number of Track Units4
Front Track Width14 in
Rear Track Width14 in
Front Track Length83 in
Rear Track Length83 in

Conveyor System

Conveyor System specifications
Discharge Conveyor Width42 in
Collecting Conveyor Width42 in
Discharge Conveyor Swing (R/L)55 °

Rotary Cutter

Rotary Cutter specifications
Cutting Width86 in
Cutting Depth14 in
Number of Tools185
Tool Spacing1 in
Cutter Diameter48 in
