Terex

PR800-7

Cold Planer

Operating Weight - Full Load
83,050 lb
Cutting Width
85 in
Displacement
1,649 in³
Gross Power
860.0 hp
All cold planers/milling machines

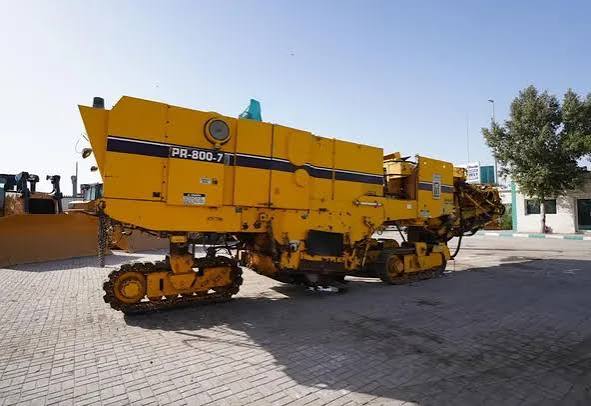

Terex PR800-7 Cold Planer
1 / 5
Image 1 of 5
Image: ironplanet.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight - Full Load83,050 lb
Operating Speed2.8 mph
Travel Speed3.2 mph
Fuel Capacity350.1 gal
Water Spray System Fluid Capacity1,299.9 gal
Shipping Weight - Empty76,000 lb
Hydraulic System Fluid Capacity35.2 gal
Operating Voltage24 V
Alternator Supplied Amperage60 A
Cooling System Fluid Capacity15.1 gal

Engine

Engine specifications
Engine Model3412E DITTA
Displacement1,649 in³
Power Measured @2,100 rpm
Gross Power860.0 hp
Number of Cylinders12

Dimensions

Dimensions specifications
Shipping Height119 in
Shipping Length620 in
Shipping Width98 in
Operating Length595 in
Max Operating Height199 in
Max Truck Clearance185 in

Track

Track specifications
Number of Track Units3
Front Track Width14 in
Rear Track Width18 in
Front Track Length94 in
Rear Track Length94 in

Conveyor System

Conveyor System specifications
Discharge Conveyor Width36 in
Collecting Conveyor Width42 in
Discharge Conveyor Swing (R/L)60 °

Rotary Cutter

Rotary Cutter specifications
Cutting Width85 in
Cutting Depth12 in
Number of Tools176
Cutter Diameter44 in
