Terex

RH40E

Mini Excavator

Gross Power
640.0 hp
Net Power
607.0 hp
All mini excavators

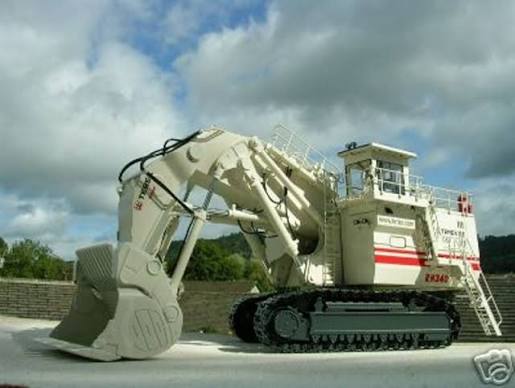

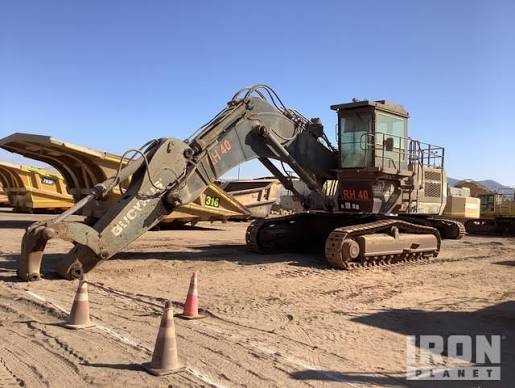

Terex RH40E Mini Excavator
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity343.5 gal
Hydraulic System Fluid Capacity343.5 gal
Operating Voltage24 V
Alternator Supplied Amperage175 A
Swing Speed6 rpm

Engine

Engine specifications
Engine ModelQSK 19 C (Tier 1)
Displacement1,159 in³
Power Measured @1,800 rpm
Gross Power640.0 hp
Net Power607.0 hp
Number of Cylinders6
AspirationTurbocharged and aftercooled

Dimensions

Dimensions specifications
Height - Top of Cab207 in
Length of Track on Ground185 in
Upper Structure Ground Clearance69 in
Length of Tracks238 in
Height of Tracks62 in

Undercarriage

Undercarriage specifications
Track Gauge150 in
Max Travel Speed1.5 mph
Number of Upper Rollers1
Loading Shovel Operating Weight228,399 lb
Loading Shovel Shoe Width24 in
Loading Shovel Ground Pressure24 psi
Number of Lower Rollers8
Backhoe Shoe Width 120 in
Backhoe Operating Weight - Shoe 1224,541 lb
Backhoe Ground Pressure - Shoe 128 psi
Number of Track Shoes per Side48
Backhoe Shoe Width 224 in
Backhoe Ground Pressure - Shoe 224 psi
Backhoe Operating Weight - Shoe 2227,517 lb
Backhoe Shoe Width 330 in
Backhoe Ground Pressure - Shoe 319 psi
Backhoe Operating Weight - Shoe 3230,493 lb

Bucket

Bucket specifications
Reference Bucket Capacity7.90 yd³
Maximum Bucket Capacity9.19 yd³
Minimum Bucket Capacity7.90 yd³

Loading Shovel

Loading Shovel specifications
Max Dig Depth83 in
Max Dig Reach414 in
Max Cutting Height430 in
Max Dump Height347 in

Backhoe Boom / Stick 1

Backhoe Boom / Stick 1 specifications
Max Dig Depth236 in
Max Cutting Height493 in

Backhoe Boom / Stick 2

Backhoe Boom / Stick 2 specifications
Max Dig Depth288 in
Max Cutting Height504 in
