Terex

TC60

Excavator

Max Digging Depth
154 in
All excavators

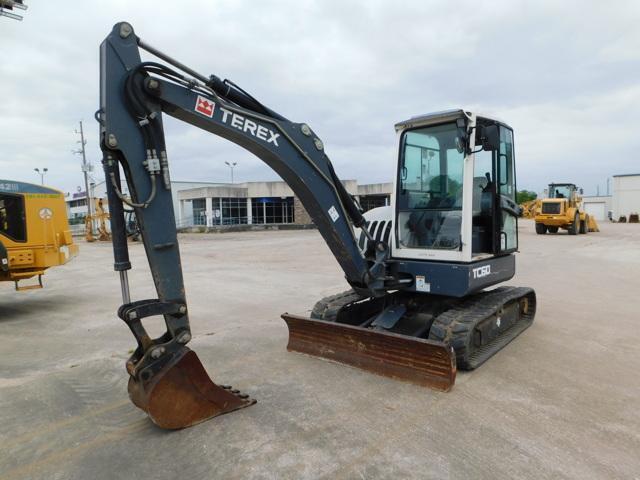

Terex TC60 Excavator
1 / 5
Image 1 of 5
Image: soldtiger.com

Specifications

55 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity25.1 gal
Hydraulic Pump Flow Capacity46.6 gal/min
Hydraulic System Fluid Capacity28.6 gal
Hydraulic System Relief Valve Pressure3,553 psi
Tire Size385/65 R 22.5
Carrier Fuel Capacity113.6 gal
Number of Axels4
Upper Structure Hydraulic System Fluid Capacity154.6 gal

Engine

Engine specifications
Displacement153 in³
Power Measured @2,400 rpm
Number of Cylinders4

Dimensions

Dimensions specifications
Height - Top of Cab107 in
Width to Outside of Tracks79 in
Removal Counterweight Clearance44 in
Transport Width101 in
Transport Height154 in
Transport Length458 in
Width w/ Outriggers Extended248 in
Upper Structure Tail Swing Radius141 in
Carrier Length394 in

Transmission

Transmission specifications
Max Speed - Forward56.0 mph
Transmission TypeManual gear box: ZF ECOSPLIT
Number of Forward Gears16
Number of Reverse Gears2

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge64 in
Max Travel Speed3.3 mph
Shoe Size16 in
Drawbar Pull9,217 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Loading Height143 in
Max Vertical Wall Digging Depth76 in
Max Cutting Height205 in

Bucket

Bucket specifications
Reference Bucket Capacity0.30 yd³
Maximum Bucket Capacity0.41 yd³
Minimum Bucket Capacity0.10 yd³

Boom

Boom specifications
Max Lift Capacity132,277 lb
Max Elevating Angle80 °
Max Height @ Max Raise Angle - no jib1,576 in
Min Height @ Max Raise Angle406 in
Number of Sections9
Swing Speed2 rpm
Max Working Radius1,457 in
Min Working Radius100 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth154 in
Max Vertical Wall Digging Depth83 in
Max Cutting Height209 in
Max Loading Height146 in
Shipping Length of Unit229 in
Shipping Height of Unit103 in

CARRIER ENGINE

CARRIER ENGINE specifications
Net Power360.0 hp
MakeTerex
Max Torque1,328 lb-ft
Power Measured @1,900 rpm
Torque Measured @1,400 rpm
