Terex

TC75

Excavator

Max Digging Depth
175 in
All excavators

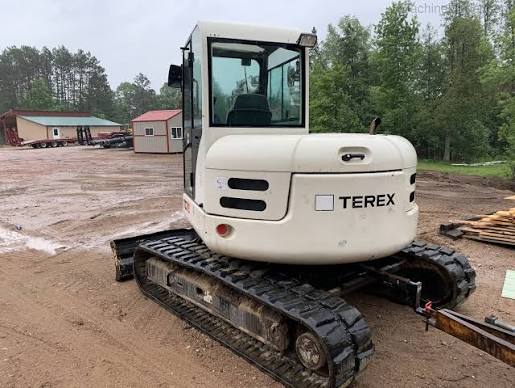

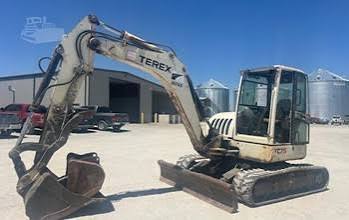

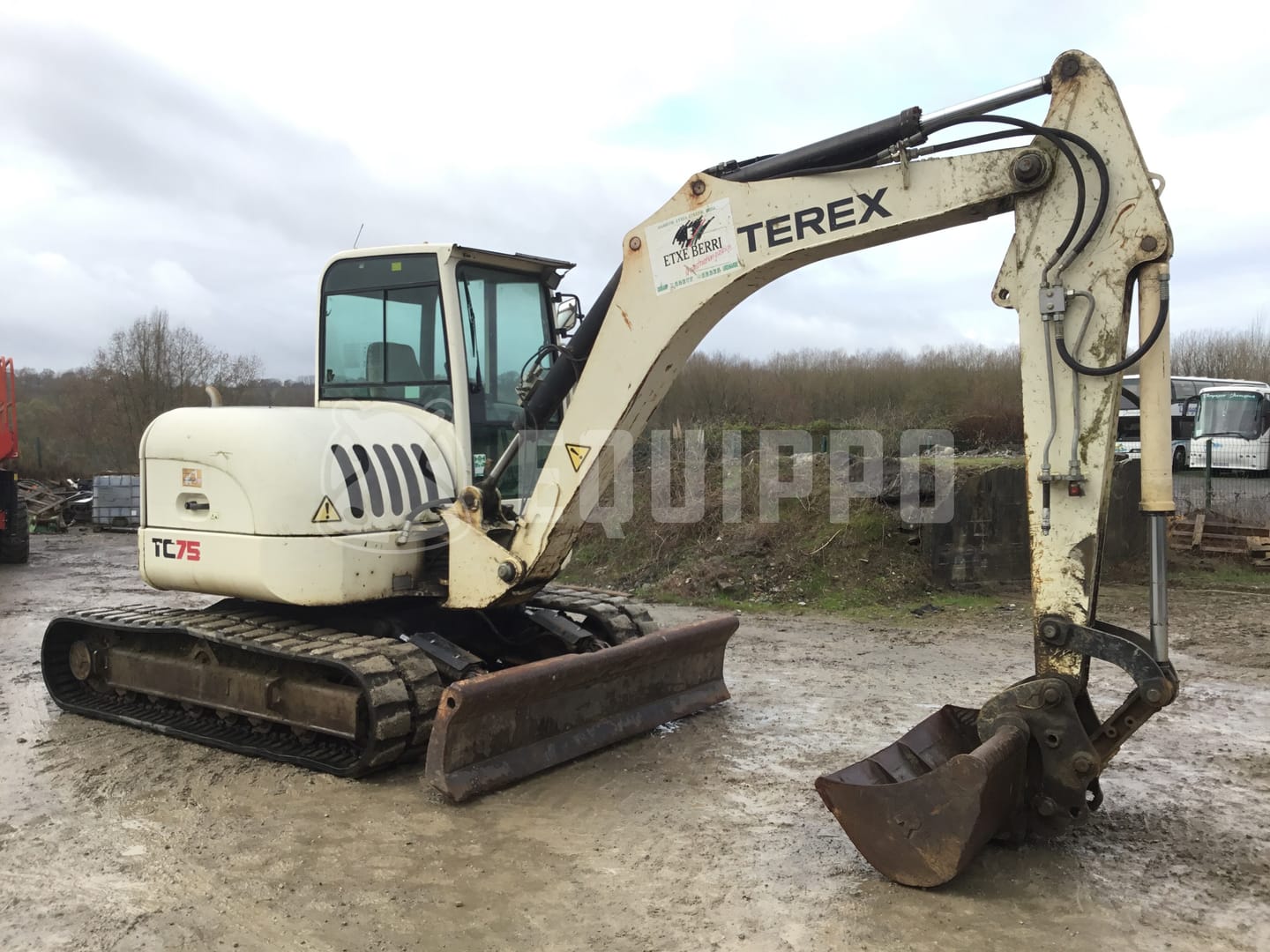

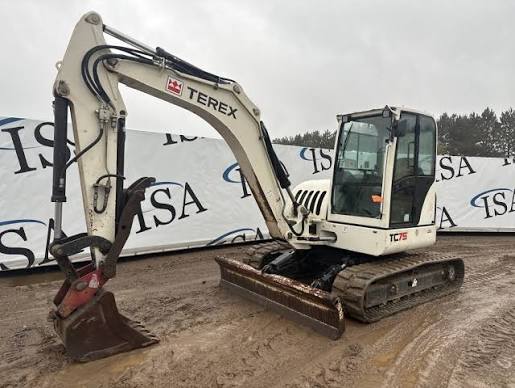

Terex TC75 Excavator
1 / 5
Image 1 of 5
Image: equippo.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity34.4 gal
Hydraulic Pump Flow Capacity41.3 gal/min
Hydraulic System Fluid Capacity37.0 gal
Hydraulic System Relief Valve Pressure4,060 psi
Operating Voltage12 V
Alternator Supplied Amperage450 A

Engine

Engine specifications
Engine ModelKHD BF 4 M
Displacement195 in³
Power Measured @2,000 rpm
Number of Cylinders4
Aspirationturbocharged
Engine Make2349

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab107 in
Tail Swing Radius48 in
Width to Outside of Tracks91 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge73 in
Max Travel Speed3.3 mph
Shoe Size18 in
Drawbar Pull13,601 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Loading Height165 in
Max Vertical Wall Digging Depth104 in
Max Cutting Height244 in
Shipping Length of Unit238 in
Shipping Height of Unit108 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
Maximum Bucket Capacity0.41 yd³
Minimum Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth175 in
Max Vertical Wall Digging Depth110 in
Max Cutting Height248 in
Max Loading Height169 in
