Terex

TL310

Wheel Loader

Operating Weight
38,801 lb
Net Power
193.0 hp
All wheel loaders

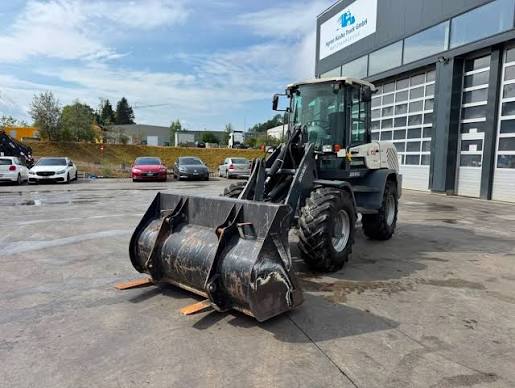

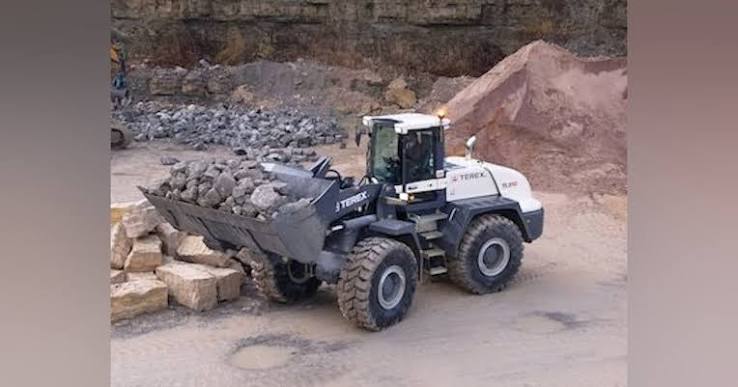

Terex TL310 Wheel Loader
1 / 5
Image 1 of 5
Image: forconstructionpros.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight38,801 lb
Fuel Capacity63.5 gal
Tire Size23.5 R25 VJT Bridgestone
Hydraulic System Fluid Capacity35.7 gal
Operating Voltage24 V
Rear Axle Oscillation12 °
Rated Bucket Capacity3.92 – 8.50 yd³

Engine

Engine specifications
Engine ModelQSB 6.7
Displacement409 in³
Net Power193.0 hp
Number of Cylinders6
AspirationTurbocharged
Engine MakeCummins
MakeCummins
Emissions CertificationCOM III/EPA III

Weights

Weights specifications
Operating Weight38,800 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity58.2 gal/min

Dimensions

Dimensions specifications
Ground Clearance28 in
Height - Top of Cab134 in
Wheelbase128 in
Width Over Tires106 in
Length with Bucket on Ground300 in
Hinge Pin - Max Height168 in

Bucket

Bucket specifications
Dump Clearance at Max Raise121 in

General Specifications

General Specifications specifications
Operating Weight38,800 (17,600) — Starting 2016 Model Year
Bucket Capacity3.9 to 8.5 (3 to 6.5) — Starting 2016 Model Year
Engine typeCummins — Starting 2016 Model Year
Engine Power200 (149) — Starting 2016 Model Year
Max Dump Height10.1 (3.07) — Starting 2016 Model Year
