Terex
Case
440

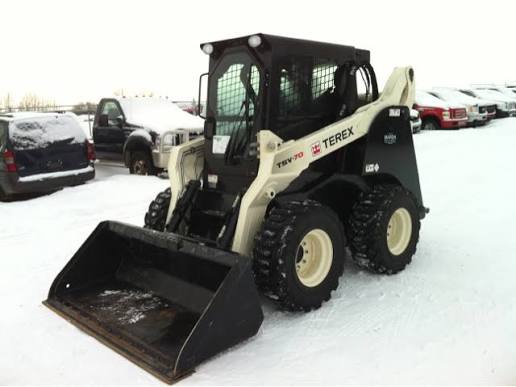

Skid Steer Loader
32 specifications
1 / 5
Image 1 of 5
Specifications
27 data points
Operating Specifications
| Operating Weight | 8,100 lb |
|---|---|
| Max Speed | 5.3 mph |
| Fuel Capacity | 29.9 gal |
| Hydraulic System Fluid Capacity | 10.1 gal |
| Tire Size | 12 X 16.5 |
| Engine Oil Fluid Capacity | 2.3 gal |
| Shipping Weight - Empty | 7,015 lb |
Engine
| Engine Model | Perkins 804D-33T |
|---|---|
| Displacement | 201 in³ |
| Gross Power | 74.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Max Torque | 181 lb-ft |
| Air cleaner | Dual Stage |
| Emissions Certification | Tier 3 |
Hydraulic System
| Pump Flow Capacity | 28.1 gal/min |
|---|
Dimensions
| Wheelbase | 49 in |
|---|---|
| Width Over Tires | 72 in |
| Reach at Max Lift and Dump | 30 in |
| Height - Top of ROPS/FOPS | 77 in |
| Length with Bucket | 144 in |
| Length w/o Bucket | 109 in |
| Height to Hinge Pin | 129 in |
| Ground Clearance - Unloaded | 10 in |
Loader
| Tipping load (ISO 14397) | 5,719 lb |
|---|---|
| bucket breakout force (ISO 14397) | 5,878 lb |
Axles
| Tractive Effort | 28,541 lb-ft |
|---|
