Terex
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

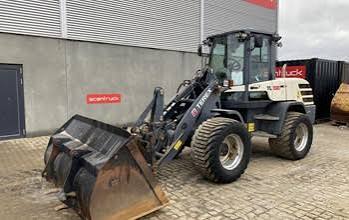

Image 1 of 5
Specifications
37 data points
Operating Specifications
| Operating Weight | 38,140 lb |
|---|---|
| Fuel Capacity | 85.1 gal |
| Hydraulic System Fluid Capacity | 55.5 gal |
| Operating Voltage | 24 V |
| Engine Oil Fluid Capacity | 5.6 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 65 A |
| Front Axle/Diff Fluid Capacity | 11.9 gal |
| Rear Axle/Diff Fluid Capacity | 10.6 gal |
| Cooling System Fluid Capacity | 13.3 gal |
| Transmission Fluid Capacity | 12.7 gal |
Engine
| Engine Model | DE08TIS |
|---|---|
| Displacement | 493 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 209.0 hp |
| Aspiration | turbocharged |
Hydraulic System
| Pump Flow Capacity | 73.0 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 3.6 s |
| Dump Time | 1.5 s |
| Relief Valve Setting | 2,845 psi |
| Pump Type | sealed system with anticavitation and relief valves |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 137 in |
| Wheelbase | 126 in |
| Reach at Max Lift and Dump | 46 in |
| Length with Bucket on Ground | 313 in |
| Hinge Pin - Max Height | 158 in |
Transmission
| Max Speed - Forward | 22.7 mph |
|---|---|
| Max Speed - Reverse | 15.1 mph |
| Transmission Type | full auto powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.70 yd³ |
|---|---|
| Dump Clearance at Max Raise | 115 in |
| Breakout Force | 40,785 lb |
| Bucket Width | 108 in |
